PXC-M03-24WD05-A

Active

TDK-LAMBDA

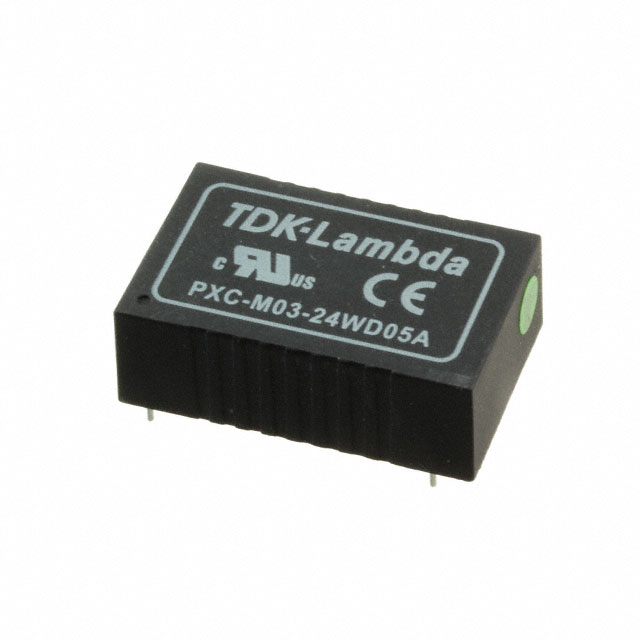

ISOLATED THROUGH HOLE DC/DC CONVERTER, DIP, 3 W, 2 OUTPUT, 5 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Safety Data Sheet EN +1

PXC-M03-24WD05-A

Active

TDK-LAMBDA

ISOLATED THROUGH HOLE DC/DC CONVERTER, DIP, 3 W, 2 OUTPUT, 5 V

Deep-Dive with AI

DocumentsDatasheet Safety Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PXC-M03-24WD05-A

Applications	Medical
Current - Output (Max)	300 mA
Efficiency	83 %
Features	SCP, OCP, OVP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	24-DIP Module, 6 Leads
Power (Watts)	3 W
Size / Dimension [x]	31.8 mm
Size / Dimension [x]	1.25 "
Size / Dimension [y]	0.8 in
Size / Dimension [y]	20.3 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	5000 V
Voltage - Output 1	5 V
Voltage - Output 2	-5 V

PXC-M03 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Features	Type	Voltage - Output 2	Package / Case	Power (Watts)	Number of Outputs	Voltage - Isolation	Voltage - Output 1	Mounting Type	Voltage - Input (Min) [Min]	Applications	Voltage - Input (Max) [Max]	Current - Output (Max)	Current - Output (Max)	Efficiency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Current - Output (Max) [Max]
TDK-LAMBDA PXC-M03-48WD15-A	-40 °C	105 ░C	OCP OVP SCP	Isolated Module	-15 V	24-DIP Module 6 Leads	3 W	2	5000 V	15 V	Through Hole	18 V	Medical	75 V	100 mA	100 mA	86 %	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm
TDK-LAMBDA PXC-M03-24WD05-A	-40 °C	105 ░C	OCP OVP SCP	Isolated Module	-5 V	24-DIP Module 6 Leads	3 W	2	5000 V	5 V	Through Hole	9 V	Medical	36 V		300 mA	83 %	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm
TDK-LAMBDA PXC-M03-48WS24-A	-40 °C	105 ░C	OCP OVP SCP	Isolated Module		24-DIP Module 5 Leads	3 W	1	5000 V	24 V	Through Hole	18 V	Medical	75 V			86.5 %	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	125 mA
TDK-LAMBDA PXC-M03-24WS24-A	-40 °C	105 ░C	OCP OVP SCP	Isolated Module		24-DIP Module 5 Leads	3 W	1	5000 V	24 V	Through Hole	9 V	Medical	36 V			87 %	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	125 mA
TDK-LAMBDA PXC-M03-48WS05-A	-40 °C	105 ░C	OCP OVP SCP	Isolated Module		24-DIP Module 5 Leads	3 W	1	5000 V	5 V	Through Hole	18 V	Medical	75 V			86.5 %	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	600 mA
TDK-LAMBDA PXC-M03-48WS15-A	-40 °C	105 ░C	OCP OVP SCP	Isolated Module		24-DIP Module 5 Leads	3 W	1	5000 V	15 V	Through Hole	18 V	Medical	75 V			86.5 %	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	200 mA
TDK-LAMBDA PXC-M03-24WS15-A	-40 °C	105 ░C	OCP OVP SCP	Isolated Module		24-DIP Module 5 Leads	3 W	1	5000 V	15 V	Through Hole	9 V	Medical	36 V			87 %	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	200 mA
