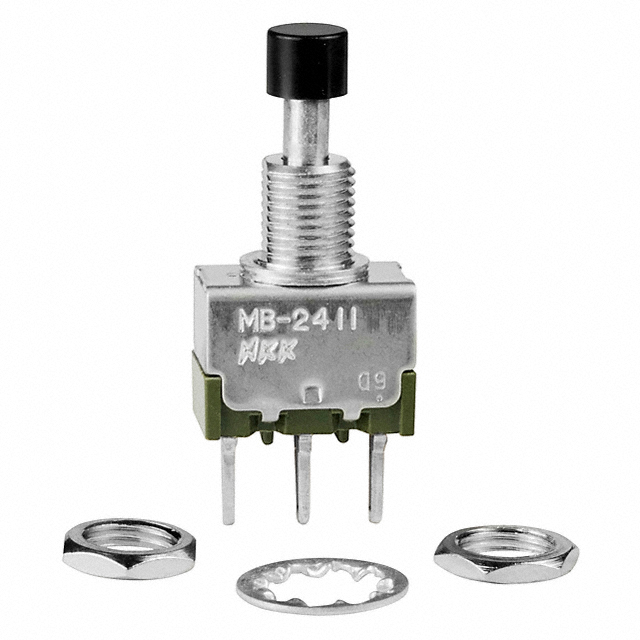

Specification	MB2411E1W03-FA

Actuator Marking	No Marking
Actuator Type	Button, Round
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating	3 A
Electrical Life (Cycles)	25000
Features	Epoxy Sealed Terminals
Mechanical Life (Cycles)	200000 Cycles
Mounting Type	Rear, Panel Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Panel Cutout Diameter	6.5 mm
Panel Cutout Shape	Circular
Switch Function	On-Mom
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	125 V

MB2411E Series

Part	Electrical Life (Cycles)	Mechanical Life (Cycles)	Features	Current Rating	Switch Function	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Voltage Rating - AC	Circuit	Actuator Type	Type	Actuator Marking	Termination Style	Panel Cutout Diameter	Panel Cutout Shape	Voltage Rating - DC	Color - Actuator/Cap
NKK Switches MB2411E1W03	25000	200000 Cycles	Epoxy Sealed Terminals	3 A	On-Mom	85 °C	-30 °C	Panel Mount Rear	125 V	SPDT	Plunger for Cap	Standard	No Marking	PC Pin	6.5 mm	Circular
NKK Switches MB2411E1G13	100000 Cycles	200000 Cycles	Epoxy Sealed Terminals	0.4 VA	On-Mom	85 °C	-30 °C	Panel Mount Rear	28 V	SPDT	Plunger for Cap	Standard	No Marking	PC Pin	6.5 mm	Circular	28 V
NKK Switches MB2411E1A03	25000	200000 Cycles	Epoxy Sealed Terminals	3 A	On-Mom	85 °C	-30 °C	Panel Mount Rear	125 V	SPDT	Plunger for Cap	Standard	No Marking	PC Pin	6.5 mm	Circular
NKK Switches MB2411E1W01-HB	25000	200000 Cycles	Epoxy Sealed Terminals	3 A	On-Mom	85 °C	-30 °C	Panel Mount Rear	125 V	SPDT	Button Round	Standard	No Marking	Solder Lug	6.5 mm	Circular		White
NKK Switches MB2411E1W13-HA	25000	200000 Cycles	Epoxy Sealed Terminals	3 A	On-Mom	85 °C	-30 °C	Panel Mount Rear	125 V	SPDT	Button Round	Standard	No Marking	PC Pin	6.5 mm	Circular		Black
NKK Switches MB2411E1G03-FA	100000 Cycles	200000 Cycles	Epoxy Sealed Terminals	0.4 VA	On-Mom	85 °C	-30 °C	Panel Mount Rear	28 V	SPDT	Button Round	Standard	No Marking	PC Pin	6.5 mm	Circular	28 V	Black
NKK Switches MB2411E1A01-HA	25000	200000 Cycles	Epoxy Sealed Terminals	3 A	On-Mom	85 °C	-30 °C	Panel Mount Rear	125 V	SPDT	Button Round	Standard	No Marking	Solder Lug	6.5 mm	Circular		Black
NKK Switches MB2411E1G03	100000 Cycles	200000 Cycles	Epoxy Sealed Terminals	0.4 VA	On-Mom	85 °C	-30 °C	Panel Mount Rear	28 V	SPDT	Plunger for Cap	Standard	No Marking	PC Pin	6.5 mm	Circular	28 V
NKK Switches MB2411E2G03-FA	100000 Cycles	200000 Cycles	Epoxy Sealed Terminals	0.4 VA	On-Mom	85 °C	-30 °C	Through Hole	28 V	SPDT	Button Round	Standard	No Marking	PC Pin			28 V	Black
NKK Switches MB2411E1A01-FB	25000	200000 Cycles	Epoxy Sealed Terminals	3 A	On-Mom	85 °C	-30 °C	Panel Mount Rear	125 V	SPDT	Button Round	Standard	No Marking	Solder Lug	6.5 mm	Circular		White

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

MB2411E1W03-FA | Datasheet
