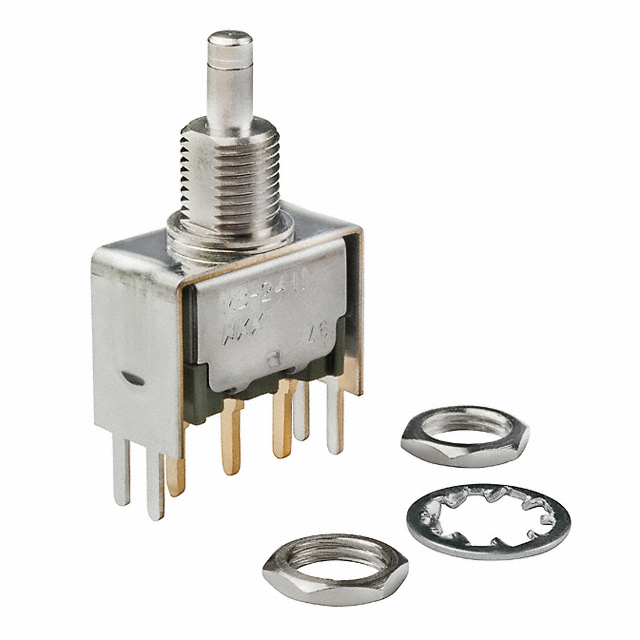

MB2411E1G13

Obsolete

NKK Switches

SWITCH PUSH SPDT 0.4VA 28V

Deep-Dive with AI

Search across all available documentation for this part.

MB2411E1G13

Obsolete

NKK Switches

SWITCH PUSH SPDT 0.4VA 28V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MB2411E1G13

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	100000 Cycles
Features	Epoxy Sealed Terminals
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-Mom
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

MB2411E Series

Part	Electrical Life	Features	Circuit	Termination Style	Type	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Actuator Type	Mechanical Life	Mounting Type	Actuator Marking	Switch Function	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Color - Actuator/Cap
NKK Switches MB2411E1W03	25000 Steps	Epoxy Sealed Terminals	SPDT	PC Pin	Standard	125 V	6.5 mm	Plunger for Cap	200000 Cycles	Panel Mount Rear	No Marking	On-Mom	3 A	-30 ░C	85 °C
NKK Switches MB2411E1G13	100000 Cycles	Epoxy Sealed Terminals	SPDT	PC Pin	Standard	28 V	6.5 mm	Plunger for Cap	200000 Cycles	Panel Mount Rear	No Marking	On-Mom	0.4 VA	-30 ░C	85 °C	28 V
NKK Switches MB2411E1A03	25000 Steps	Epoxy Sealed Terminals	SPDT	PC Pin	Standard	125 V	6.5 mm	Plunger for Cap	200000 Cycles	Panel Mount Rear	No Marking	On-Mom	3 A	-30 ░C	85 °C
NKK Switches MB2411E1W13-HA	25000 Steps	Epoxy Sealed Terminals	SPDT	PC Pin	Standard	125 V	6.5 mm	Button Round	200000 Cycles	Panel Mount Rear	No Marking	On-Mom	3 A	-30 ░C	85 °C		Black
NKK Switches MB2411E1G03-FA	100000 Cycles	Epoxy Sealed Terminals	SPDT	PC Pin	Standard	28 V	6.5 mm	Button Round	200000 Cycles	Panel Mount Rear	No Marking	On-Mom	0.4 VA	-30 ░C	85 °C	28 V	Black
NKK Switches MB2411E1A01-HA	25000 Steps	Epoxy Sealed Terminals	SPDT	Solder Lug	Standard	125 V	6.5 mm	Button Round	200000 Cycles	Panel Mount Rear	No Marking	On-Mom	3 A	-30 ░C	85 °C		Black
NKK Switches MB2411E2G03-FA	100000 Cycles	Epoxy Sealed Terminals	SPDT	PC Pin	Standard	28 V		Button Round	200000 Cycles	Through Hole	No Marking	On-Mom	0.4 VA	-30 ░C	85 °C	28 V	Black
NKK Switches MB2411E1W13-HC	25000 Steps	Epoxy Sealed Terminals	SPDT	PC Pin	Standard	125 V	6.5 mm	Button Round	200000 Cycles	Panel Mount Rear	No Marking	On-Mom	3 A	-30 ░C	85 °C		Red
NKK Switches MB2411E2G03-HA	100000 Cycles	Epoxy Sealed Terminals	SPDT	PC Pin	Standard	28 V		Button Round	200000 Cycles	Through Hole	No Marking	On-Mom	0.4 VA	-30 ░C	85 °C	28 V	Black
NKK Switches MB2411E1G03-FC	100000 Cycles	Epoxy Sealed Terminals	SPDT	PC Pin	Standard	28 V	6.5 mm	Button Round	200000 Cycles	Panel Mount Rear	No Marking	On-Mom	0.4 VA	-30 ░C	85 °C	28 V	Red

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.28
		10	$ 7.45

Description

General part information

MB2411E Series

Pushbutton Switch SPDT Standard Panel Mount, Rear

Documents

Technical documentation and resources

No documents available
