70V26L55J8

Obsolete

Renesas Electronics Corporation

IC SRAM 256KBIT PARALLEL 84PLCC

Find alt

Alpha

70V26L55J8

Obsolete

Renesas Electronics Corporation

IC SRAM 256KBIT PARALLEL 84PLCC

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

70V26 Series

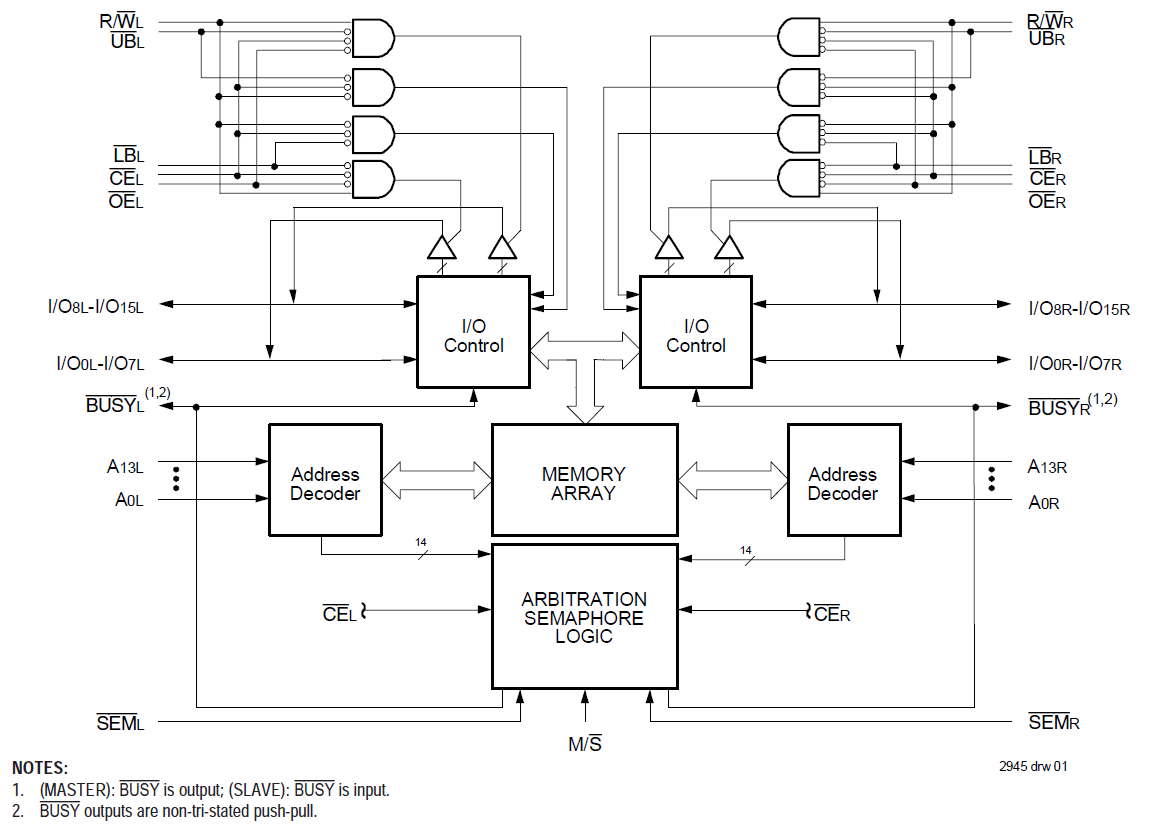

The 70V26 is a high-speed 16K x 16 Dual-Port Static RAM designed to be used as a stand-alone Dual-Port RAM or as a combination MASTER/SLAVE Dual-Port RAM for 32-bit or wider memory system applications resulting in full-speed, error-free operation without the need for additional discrete logic. An automatic power down feature controlled by CE permits the on-chip circuitry of each port to enter a very low standby power mode.

Technical Specifications

Parameters and characteristics for this part

Specification	70V26L55J8

Access Time	55 ns
Memory Depth	16 K
Memory Format	SRAM
Memory Interface (Type)	Parallel
Memory Size	32 kB
Memory Type	Volatile
Memory Width	16 bit
Mounting Type	Surface Mount
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	0 °C
Package / Case	84-LCC (J-Lead)
Package Length	29.31 mm
Package Name	84-PLCC
Package Width	29.31 mm
Technology	SRAM - Dual Port, Asynchronous
Voltage - Supply (Maximum)	3.6 V
Voltage - Supply (Minimum)	3 V
Write Cycle Time - Page	55 ns
Write Cycle Time - Word	55 ns

70V26 Series

Part	Memory Format	Write Cycle Time - Word	Write Cycle Time - Page	Package Length	Package Name	Package Width	Technology	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Memory Type	Access Time	Memory Width	Memory Depth	Package / Case	Memory Interface (Type)	Memory Size	Mounting Type
Renesas Electronics Corporation 70V26L25J8	SRAM	25 ns	25 ns	29.31 mm	84-PLCC	29.31 mm	Asynchronous SRAM - Dual Port	0 °C	70 °C	3.6 V	3 V	Volatile	25 ns	16 bit	16 K	84-LCC (J-Lead)	Parallel	32 kB	Surface Mount
Renesas Electronics Corporation 70V26S25J	SRAM	25 ns	25 ns	29.31 mm	84-PLCC	29.31 mm	Asynchronous SRAM - Dual Port	0 °C	70 °C	3.6 V	3 V	Volatile	25 ns	16 bit	16 K	84-LCC (J-Lead)	Parallel	32 kB	Surface Mount
Renesas Electronics Corporation 70V26L35J	SRAM	35 ns	35 ns	29.31 mm	84-PLCC	29.31 mm	Asynchronous SRAM - Dual Port	0 °C	70 °C	3.6 V	3 V	Volatile	35 ns	16 bit	16 K	84-LCC (J-Lead)	Parallel	32 kB	Surface Mount
Renesas Electronics Corporation 70V26L55J	SRAM	55 ns	55 ns	29.31 mm	84-PLCC	29.31 mm	Asynchronous SRAM - Dual Port	0 °C	70 °C	3.6 V	3 V	Volatile	55 ns	16 bit	16 K	84-LCC (J-Lead)	Parallel	32 kB	Surface Mount
Renesas Electronics Corporation 70V26S55J8	SRAM	55 ns	55 ns	29.31 mm	84-PLCC	29.31 mm	Asynchronous SRAM - Dual Port	0 °C	70 °C	3.6 V	3 V	Volatile	55 ns	16 bit	16 K	84-LCC (J-Lead)	Parallel	32 kB	Surface Mount
Renesas Electronics Corporation 70V26L25JI8	SRAM	25 ns	25 ns	29.31 mm	84-PLCC	29.31 mm	Asynchronous SRAM - Dual Port	-40 °C	85 °C	3.6 V	3 V	Volatile	25 ns	16 bit	16 K	84-LCC (J-Lead)	Parallel	32 kB	Surface Mount
Renesas Electronics Corporation 70V26L25J	SRAM	25 ns	25 ns	29.31 mm	84-PLCC	29.31 mm	Asynchronous SRAM - Dual Port	0 °C	70 °C	3.6 V	3 V	Volatile	25 ns	16 bit	16 K	84-LCC (J-Lead)	Parallel	32 kB	Surface Mount
Renesas Electronics Corporation 70V26S25J8	SRAM	25 ns	25 ns	29.31 mm	84-PLCC	29.31 mm	Asynchronous SRAM - Dual Port	0 °C	70 °C	3.6 V	3 V	Volatile	25 ns	16 bit	16 K	84-LCC (J-Lead)	Parallel	32 kB	Surface Mount
Renesas Electronics Corporation 70V26L25JI	SRAM	25 ns	25 ns	29.31 mm	84-PLCC	29.31 mm	Asynchronous SRAM - Dual Port	-40 °C	85 °C	3.6 V	3 V	Volatile	25 ns	16 bit	16 K	84-LCC (J-Lead)	Parallel	32 kB	Surface Mount
Renesas Electronics Corporation 70V26L55J8	SRAM	55 ns	55 ns	29.31 mm	84-PLCC	29.31 mm	Asynchronous SRAM - Dual Port	0 °C	70 °C	3.6 V	3 V	Volatile	55 ns	16 bit	16 K	84-LCC (J-Lead)	Parallel	32 kB	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

70V26 Data Sheet

70V26L55J8 | Datasheet
