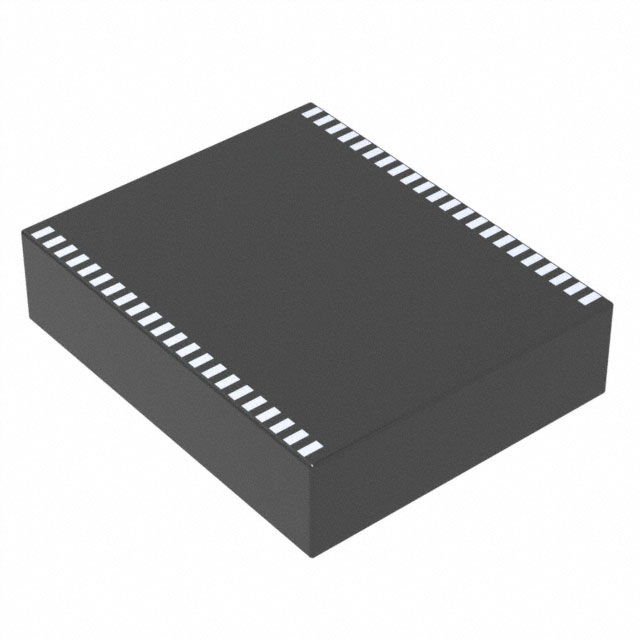

MAXM22510GLH+
ActiveAnalog Devices Inc./Maxim Integrated
IC TRANSCEIVER FULL 1/1 44LGA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAXM22510GLH+
ActiveAnalog Devices Inc./Maxim Integrated
IC TRANSCEIVER FULL 1/1 44LGA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAXM22510GLH+ | MAXM22510 Series |
|---|---|---|
| Contents | - | Board(s) |
| Data Rate | 500 kbps | 500 kbps |
| Duplex | Full | Full |
| Embedded | - | False |
| Function | - | RS422, RS485 |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 44-BFLGA | 44-BFLGA |
| Protocol | RS422, RS485 | RS422, RS485 |
| Receiver Hysteresis | 20 mV | 20 mV |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | 44-LGA (9.35x11.5) | 44-LGA (9.35x11.5) |
| Type | Transceiver | Transceiver, Interface |
| Utilized IC / Part | - | MAXM22510 |
| Voltage - Supply [Max] | 3.6 V | 3.6 V |
| Voltage - Supply [Min] | 3 V | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 12.78 | |
| 10 | $ 9.28 | |||
MAXM22510 Series
IC TRANSCEIVER FULL 1/1 44LGA
| Part | Receiver Hysteresis | Voltage - Supply [Max] | Voltage - Supply [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Data Rate | Protocol | Duplex | Supplier Device Package | Mounting Type | Package / Case | Type | Embedded | Utilized IC / Part | Function | Supplied Contents | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAXM22510GLH+ | 20 mV | 3.6 V | 3 V | -40 °C | 105 ░C | 500 kbps | RS422, RS485 | Full | 44-LGA (9.35x11.5) | Surface Mount | 44-BFLGA | Transceiver | |||||
Analog Devices Inc./Maxim Integrated MAXM22510EVKIT# | Interface | MAXM22510 | RS422, RS485 | Board(s) | Board(s) | ||||||||||||
Analog Devices Inc./Maxim Integrated MAXM22510GLH+T | 20 mV | 3.6 V | 3 V | -40 °C | 105 °C | 500 kbps | RS422, RS485 | Full | 44-LGA (9.35x11.5) | Surface Mount | 44-BFLGA | Transceiver |
Description
General part information
MAXM22510 Series
1/1 Transceiver Full RS422, RS485 44-LGA (9.35x11.5)
