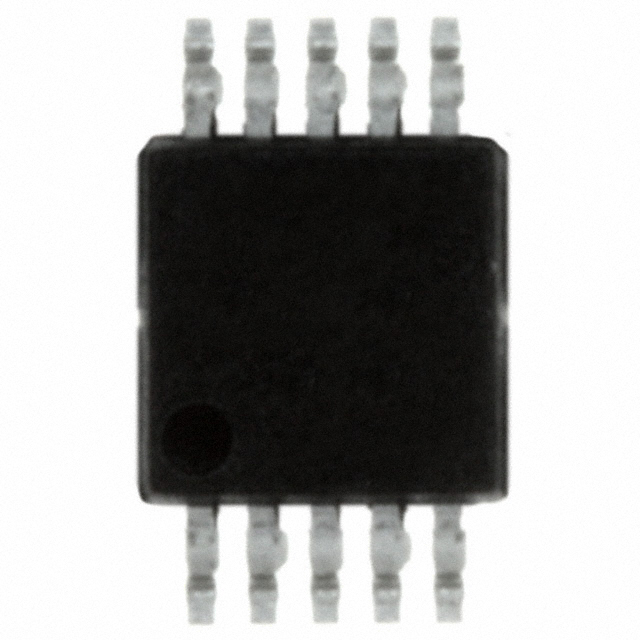

CS4348-CZZ

Active

Cirrus Logic Inc.

DIGITAL TO ANALOG CONVERTER, 2 CHANNELS, 24 BIT, FILTERED, STEREO, VOLTAGE, SERIAL, 4.75 V TO 5.25 V… MORE

Search across all available documentation for this part.

Active

Cirrus Logic Inc.

DIGITAL TO ANALOG CONVERTER, 2 CHANNELS, 24 BIT, FILTERED, STEREO, VOLTAGE, SERIAL, 4.75 V TO 5.25 V… MORE

Technical Specifications

Parameters and characteristics for this part

Specification	CS4348-CZZ

Data Interface	SPI
Mounting Type	Surface Mount
Number of Channels [custom]	2
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Package / Case	10-MSOP, 10-TFSOP
Package / Case [x]	3 mm
Package / Case [x]	0.118 in
Resolution (Bits)	24 b
Sampling Rate (Per Second)	192k
Type	Audio, DAC
Voltage - Supply	5 V
Voltage - Supply [Max]	3.47 V
Voltage - Supply [Min]	3 V
Voltage Supply Source	Single Supply

Part	Data Interface	Type	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Voltage - Supply	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Resolution (Bits)	Sampling Rate (Per Second)	Package / Case	Package / Case [x]	Package / Case [x]	Voltage Supply Source	Number of Channels [custom]
Cirrus Logic Inc. CS4348-CZZ	SPI	Audio DAC	Surface Mount	3.47 V	3 V	5 V	-10 °C	158 °F	24 b	192k	10-MSOP 10-TFSOP	3 mm	0.118 in	Single Supply	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Multi-bit Delta-Sigma Modulator

24-bit Conversion

Automatically Detects Sample Rates up to 192 kHz
