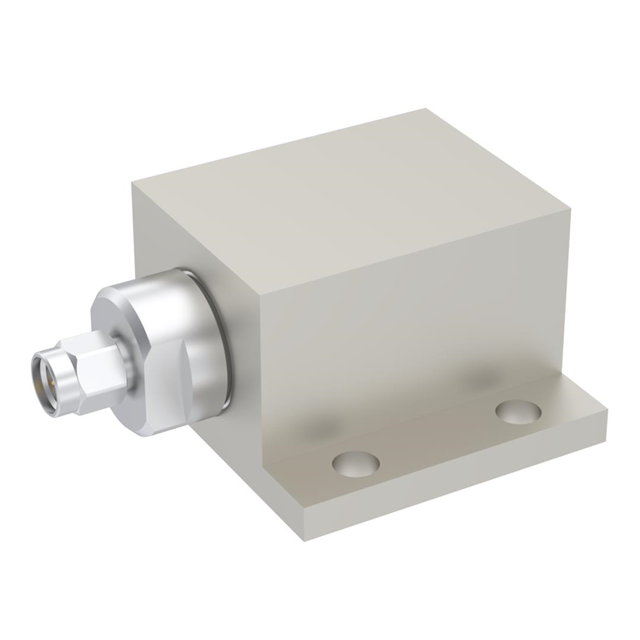

Specification	R404774100

Body Material	Stainless Steel
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Finish	Gold
Contact Material	Beryllium Copper
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max	6000 MHz
Impedance	50 Ohm
Mounting Type	Square Flange, Panel Mount

R40477 Series

Part	Dielectric Material	Body Material	Contact Finish	Mounting Type	Impedance	Connector Type	Connector Style	Frequency - Max	Contact Material	Body Finish
Radiall USA, Inc. R404774000	Polytetrafluoroethylene (PTFE)	Stainless Steel	Gold	Cap Free Hanging	50 Ohm	Male Pin Plug	SMA	6000 MHz	Beryllium Copper
Radiall USA, Inc. R404773000	Polytetrafluoroethylene (PTFE)	Stainless Steel	Gold	Cap Free Hanging	50 Ohm	Female Socket Jack	TNC	6000 MHz	Beryllium Copper
Radiall USA, Inc. R404775100	Polytetrafluoroethylene (PTFE)	Stainless Steel	Gold	Panel Mount Square Flange	50 Ohm	Female Socket Jack	SMA	6000 MHz	Beryllium Copper
Radiall USA, Inc. R404775000	Polytetrafluoroethylene (PTFE)	Stainless Steel	Gold	Cap Free Hanging	50 Ohm	Female Socket Jack	SMA	6000 MHz	Beryllium Copper
Radiall USA, Inc. R404774100	Polytetrafluoroethylene (PTFE)	Stainless Steel	Gold	Panel Mount Square Flange	50 Ohm	Male Pin Plug	SMA	6000 MHz	Beryllium Copper
Radiall USA, Inc. R404779000	Polytetrafluoroethylene (PTFE)	Brass	Gold	Cap Free Hanging	50 Ohm	Female Socket Jack	4.3/10	6000 MHz	Beryllium Copper	Nickel
Radiall USA, Inc. R404771000	Polytetrafluoroethylene (PTFE)	Brass	Gold	Cap Free Hanging	50 Ohm	Female Socket Jack	N Type	6000 MHz	Beryllium Copper	White Bronze
Radiall USA, Inc. R404770000	Polytetrafluoroethylene (PTFE)	Stainless Steel	Gold	Cap Free Hanging	50 Ohm	Male Pin Plug	N Type	6000 MHz	Beryllium Copper
Radiall USA, Inc. R404772000	Polytetrafluoroethylene (PTFE)	Stainless Steel	Gold	Cap Free Hanging	50 Ohm	Male Pin Plug	TNC	6000 MHz	Beryllium Copper
