E3FSC
ActiveSwitchcraft Inc.

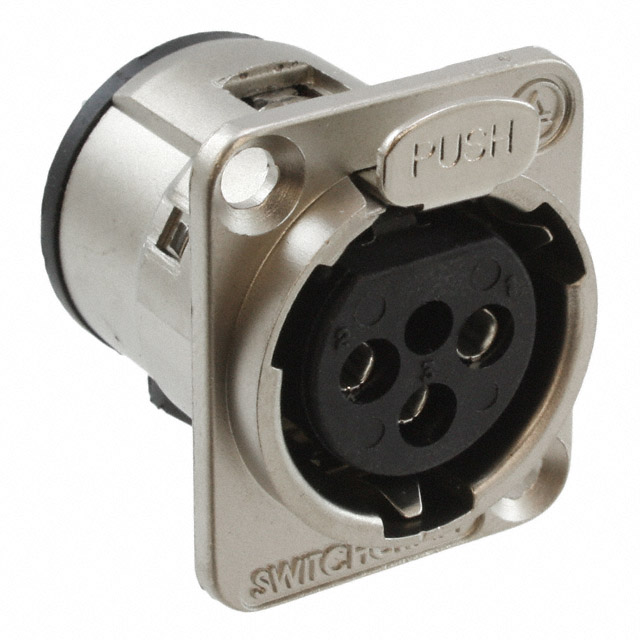

CONN XLR CONNECTOR F 3 POS SOLDER CUP ST PANEL MOUNT 4 TERMINAL 1 PORT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
E3FSC
ActiveSwitchcraft Inc.
CONN XLR CONNECTOR F 3 POS SOLDER CUP ST PANEL MOUNT 4 TERMINAL 1 PORT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | E3FSC | E3FS Series |
|---|---|---|
| Applications | Audio, Instrumentation | Audio, Instrumentation |
| Color | Silver | Silver, Black |
| Connector Type | Female Sockets, Plug | Female Sockets, Insert, Plug |
| Contact Finish - Mating | Silver | Gold, Silver |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 15 A | 15 A |
| Fastening Type | Latch Lock | Latch Lock |
| Features | Ground | Insert Only, Requires Shell, Ground |
| Insert Material | Thermoplastic | Thermoplastic |
| Mounting Feature | Flange | Flange |
| Mounting Type | - | Through Hole, Panel Mount |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel, Chrome |
| Shell Material | Zinc Die Cast | Zinc Die Cast |
| Shell Size - Insert | XLR | XLR |
| Shielding | Shielded | Shielded |
| Termination | - | Solder, Screw |
E3FS Series
CONN FMALE INSERT XLR 3P SOLDER
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Termination | Current Rating (Amps) | Shell Size - Insert | Orientation | Features | Applications | Mounting Type | Contact Material | Contact Finish - Mating | Insert Material | Primary Material | Shielding | Color | Shell Material | Fastening Type | Mounting Feature | Shell Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. E3FSTAUQG | 85 °C | -55 °C | Female Sockets, Insert | Solder | 15 A | XLR | Keyed | Insert Only, Requires Shell | Audio, Instrumentation | Through Hole | Copper Alloy | Gold | Thermoplastic | |||||||
Switchcraft Inc. E3FSTQG | 85 °C | -55 °C | Female Sockets, Insert | Solder | 15 A | XLR | Keyed | Insert Only, Requires Shell | Audio, Instrumentation | Through Hole | Copper Alloy | Silver | Thermoplastic | |||||||
Switchcraft Inc. E3FSW | 85 °C | -55 °C | Female Sockets, Plug | Screw | 15 A | XLR | Keyed | Ground | Audio, Instrumentation | Copper Alloy | Silver | Thermoplastic | Metal | Shielded | Silver | Zinc Die Cast | Latch Lock | Flange | Nickel | |
Switchcraft Inc. E3FST | 85 °C | -55 °C | Female Sockets, Plug | Solder | 15 A | XLR | Keyed | Ground | Audio, Instrumentation | Panel Mount, Through Hole | Copper Alloy | Silver | Thermoplastic | Metal | Shielded | Silver | Zinc Die Cast | Latch Lock | Flange | Nickel |
Switchcraft Inc. E3FSTBAU | 85 °C | -55 °C | Female Sockets, Plug | Solder | 15 A | XLR | Keyed | Ground | Audio, Instrumentation | Panel Mount, Through Hole | Copper Alloy | Gold | Thermoplastic | Metal | Shielded | Black | Zinc Die Cast | Latch Lock | Flange | Chrome |
Switchcraft Inc. E3FSCQG | 85 °C | -55 °C | Female Sockets, Insert | 15 A | XLR | Keyed | Insert Only, Requires Shell | Audio, Instrumentation | Copper Alloy | Silver | Thermoplastic | |||||||||
Switchcraft Inc. E3FSC | 85 °C | -55 °C | Female Sockets, Plug | 15 A | XLR | Keyed | Ground | Audio, Instrumentation | Copper Alloy | Silver | Thermoplastic | Metal | Shielded | Silver | Zinc Die Cast | Latch Lock | Flange | Nickel | ||
Switchcraft Inc. E3FSCBAU | 85 °C | -55 °C | Female Sockets, Plug | 15 A | XLR | Keyed | Ground | Audio, Instrumentation | Copper Alloy | Gold | Thermoplastic | Metal | Shielded | Black | Zinc Die Cast | Latch Lock | Flange | Chrome | ||
Switchcraft Inc. E3FSTAU | 85 °C | -55 °C | Female Sockets, Plug | Solder | 15 A | XLR | Keyed | Ground | Audio, Instrumentation | Panel Mount, Through Hole | Copper Alloy | Gold | Thermoplastic | Metal | Shielded | Silver | Zinc Die Cast | Latch Lock | Flange | Nickel |
Switchcraft Inc. E3FSCB | 85 °C | -55 °C | Female Sockets, Plug | 15 A | XLR | Keyed | Ground | Audio, Instrumentation | Copper Alloy | Silver | Thermoplastic | Metal | Shielded | Black | Zinc Die Cast | Latch Lock | Flange | Chrome |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.93 | |
| 10 | $ 6.85 | |||
| 25 | $ 6.19 | |||
| 50 | $ 5.74 | |||
| 100 | $ 5.33 | |||
| 250 | $ 4.84 | |||
| 500 | $ 4.52 | |||
| 1000 | $ 4.22 | |||
| 2500 | $ 3.98 | |||
Description
General part information
E3FS Series
3 Position Circular Connector Plug, Female Sockets Solder Cup
