E3FSCBAU

Active

Switchcraft Inc.

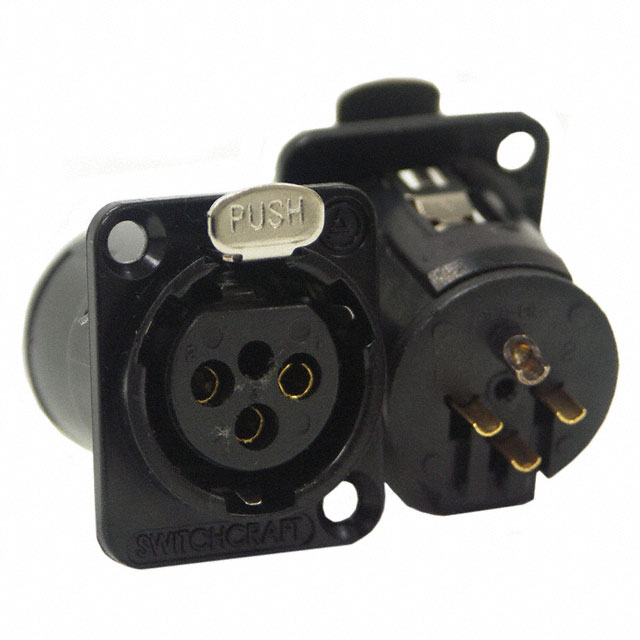

CONN PLUG FMALE XLR 3P SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

E3FSCBAU

Active

Switchcraft Inc.

CONN PLUG FMALE XLR 3P SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 7.01

Description

General part information

E3FS Series

3 Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	E3FSCBAU	E3FS Series

Applications	Audio, Instrumentation	Audio, Instrumentation
Color	Black	Silver, Black
Connector Type	Female Sockets, Plug	Female Sockets, Insert, Plug
Contact Finish - Mating	Gold	Gold, Silver
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	15 A	15 A
Fastening Type	Latch Lock	Latch Lock
Features	Ground	Insert Only, Requires Shell, Ground
Insert Material	Thermoplastic	Thermoplastic
Mounting Feature	Flange	Flange
Mounting Type	-	Through Hole, Panel Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Chrome	Nickel, Chrome
Shell Material	Zinc Die Cast	Zinc Die Cast
Shell Size - Insert	XLR	XLR
Shielding	Shielded	Shielded
Termination	-	Solder, Screw

E3FS Series

CONN FMALE INSERT XLR 3P SOLDER

Part	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Termination	Current Rating (Amps)	Shell Size - Insert	Orientation	Features	Applications	Mounting Type	Contact Material	Contact Finish - Mating	Insert Material	Primary Material	Shielding	Color	Shell Material	Fastening Type	Mounting Feature	Shell Finish
Switchcraft Inc. E3FSTAUQG	85 °C	-55 °C	Female Sockets, Insert	Solder	15 A	XLR	Keyed	Insert Only, Requires Shell	Audio, Instrumentation	Through Hole	Copper Alloy	Gold	Thermoplastic
Switchcraft Inc. E3FSTQG	85 °C	-55 °C	Female Sockets, Insert	Solder	15 A	XLR	Keyed	Insert Only, Requires Shell	Audio, Instrumentation	Through Hole	Copper Alloy	Silver	Thermoplastic
Switchcraft Inc. E3FSW	85 °C	-55 °C	Female Sockets, Plug	Screw	15 A	XLR	Keyed	Ground	Audio, Instrumentation		Copper Alloy	Silver	Thermoplastic	Metal	Shielded	Silver	Zinc Die Cast	Latch Lock	Flange	Nickel
Switchcraft Inc. E3FST	85 °C	-55 °C	Female Sockets, Plug	Solder	15 A	XLR	Keyed	Ground	Audio, Instrumentation	Panel Mount, Through Hole	Copper Alloy	Silver	Thermoplastic	Metal	Shielded	Silver	Zinc Die Cast	Latch Lock	Flange	Nickel
Switchcraft Inc. E3FSTBAU	85 °C	-55 °C	Female Sockets, Plug	Solder	15 A	XLR	Keyed	Ground	Audio, Instrumentation	Panel Mount, Through Hole	Copper Alloy	Gold	Thermoplastic	Metal	Shielded	Black	Zinc Die Cast	Latch Lock	Flange	Chrome
Switchcraft Inc. E3FSCQG	85 °C	-55 °C	Female Sockets, Insert		15 A	XLR	Keyed	Insert Only, Requires Shell	Audio, Instrumentation		Copper Alloy	Silver	Thermoplastic
Switchcraft Inc. E3FSC	85 °C	-55 °C	Female Sockets, Plug		15 A	XLR	Keyed	Ground	Audio, Instrumentation		Copper Alloy	Silver	Thermoplastic	Metal	Shielded	Silver	Zinc Die Cast	Latch Lock	Flange	Nickel
Switchcraft Inc. E3FSCBAU	85 °C	-55 °C	Female Sockets, Plug		15 A	XLR	Keyed	Ground	Audio, Instrumentation		Copper Alloy	Gold	Thermoplastic	Metal	Shielded	Black	Zinc Die Cast	Latch Lock	Flange	Chrome
Switchcraft Inc. E3FSTAU	85 °C	-55 °C	Female Sockets, Plug	Solder	15 A	XLR	Keyed	Ground	Audio, Instrumentation	Panel Mount, Through Hole	Copper Alloy	Gold	Thermoplastic	Metal	Shielded	Silver	Zinc Die Cast	Latch Lock	Flange	Nickel
Switchcraft Inc. E3FSCB	85 °C	-55 °C	Female Sockets, Plug		15 A	XLR	Keyed	Ground	Audio, Instrumentation		Copper Alloy	Silver	Thermoplastic	Metal	Shielded	Black	Zinc Die Cast	Latch Lock	Flange	Chrome
