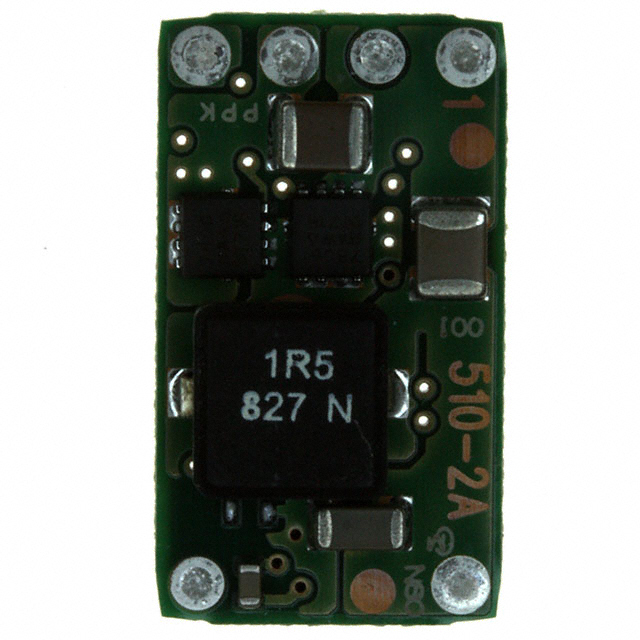

MPDTH12050WAH
ObsoleteMurata Electronics
DC DC CONVERTER 1.2-5.5V 33W
MPDTH12050WAH
ObsoleteMurata Electronics
DC DC CONVERTER 1.2-5.5V 33W
Description
General part information
MPDTH12 Series
Non-Isolated PoL Module DC DC Converter 1 Output 1.2 ~ 5.5V 6A 10.8V - 13.2V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | MPDTH12050WAH |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 6 A |
| Efficiency | 93 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 33 W |
| Size / Dimension Height | 0.33 in |
| Size / Dimension Length | 0.87 in |
| Size / Dimension Width | 0.49 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) | 13.2 V |
| Voltage - Input (Min) | 10.8 V |
| Voltage - Output 1 (Max) | 5.5 V |
| Voltage - Output 1 (Min) | 1.2 V |
