341-047-520-108

Active

EDAC Inc.

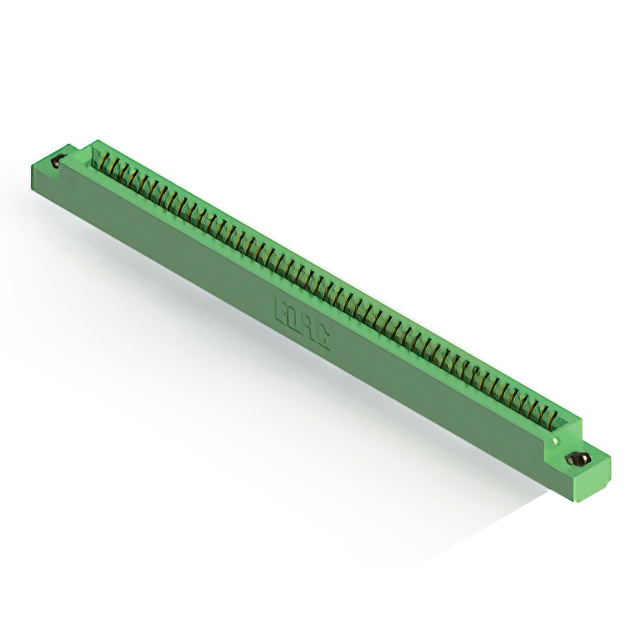

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 47 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

341-047-520-108

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 47 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	341-047-520-108

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions/Bay/Row [custom]	47
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

341-047 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination Rows	Material - Insulation	Color	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Card Type	Mounting Type	Contact Material	Contact Finish	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Gender	Number of Rows	Read Out	Number of Positions/Bay/Row [custom]	Pitch [x]	Pitch [x]	Termination
EDAC Inc. 341-047-500-102	-40 °C	105 ░C	1	Diallyl Phthalate (DAP)	Green	Semi Bellows	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Through Hole	Copper Alloy	Gold	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Female	1	Single	47	2.54 mm	0.1 in	Solder Eyelet(s)
EDAC Inc. 341-047-521-104	-40 °C	105 ░C	1	Polyester Thermoplastic	Green	Semi Bellows	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Through Hole	Copper Alloy	Gold	3.96 mm	0.156 in	Flush Mount Top Opening Unthreaded	Female	1	Single	47	2.54 mm	0.1 in	Solder
EDAC Inc. 341-047-500-104	-40 °C	105 ░C	1	Diallyl Phthalate (DAP)	Green	Semi Bellows	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Through Hole	Copper Alloy	Gold	3.96 mm	0.156 in	Flush Mount Top Opening Unthreaded	Female	1	Single	47	2.54 mm	0.1 in	Solder Eyelet(s)
EDAC Inc. 341-047-524-107	-40 °C	105 ░C	1	Polyester Thermoplastic	Green	Semi Bellows	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Through Hole	Copper Alloy	Gold			Flush Mount M3 Threaded Insert Top Opening	Female	1	Single	47	2.54 mm	0.1 in	Solder
EDAC Inc. 341-047-500-107	-40 °C	105 ░C	1	Diallyl Phthalate (DAP)	Green	Semi Bellows	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Through Hole	Copper Alloy	Gold			Flush Mount M3 Threaded Insert Top Opening	Female	1	Single	47	2.54 mm	0.1 in	Solder Eyelet(s)
EDAC Inc. 341-047-500-101	-40 °C	105 ░C	1	Diallyl Phthalate (DAP)	Green	Semi Bellows	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Through Hole	Copper Alloy	Gold				Female	1	Single	47	2.54 mm	0.1 in	Solder Eyelet(s)
EDAC Inc. 341-047-520-101	-40 °C	105 ░C	1	Polyester Thermoplastic	Green	Semi Bellows	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Through Hole	Copper Alloy	Gold				Female	1	Single	47	2.54 mm	0.1 in	Solder
EDAC Inc. 341-047-521-102	-40 °C	105 ░C	1	Polyester Thermoplastic	Green	Semi Bellows	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Through Hole	Copper Alloy	Gold	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Female	1	Single	47	2.54 mm	0.1 in	Solder
EDAC Inc. 341-047-521-103	-40 °C	105 ░C	1	Polyester Thermoplastic	Green	Semi Bellows	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Through Hole	Copper Alloy	Gold	2.95 mm	0.116 in	Floating Bobbin Flush Mount	Female	1	Single	47	2.54 mm	0.1 in	Solder
EDAC Inc. 341-047-520-108	-40 °C	105 ░C	1	Polyester Thermoplastic	Green	Semi Bellows	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Through Hole	Copper Alloy	Gold			4-40 Flush Mount Threaded Insert Top Opening	Female	1	Single	47	2.54 mm	0.1 in	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 22.82
Newark	Each	1	$ 25.49
		100	$ 20.80
		250	$ 17.15
		500	$ 16.48
		1000	$ 14.44

Description

General part information

341-047 Series

47 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
