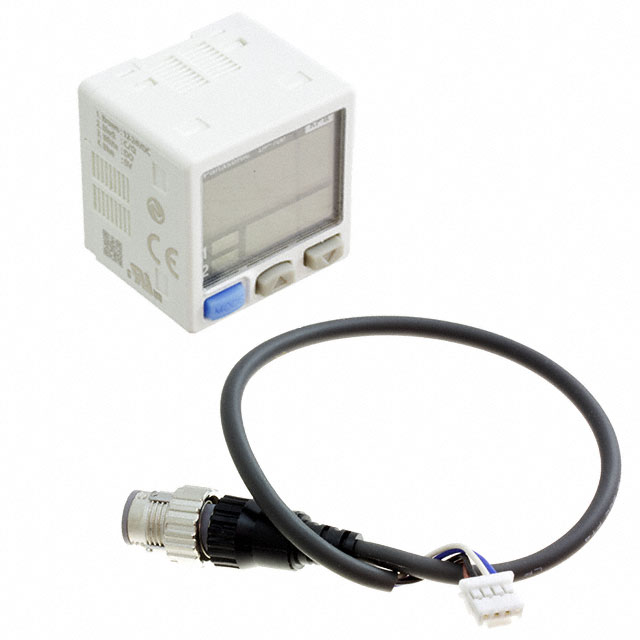

DP-102ZL3-M-P

Active

Panasonic Industrial Automation Sales

SENSOR DIGITAL PRESSURE PNP

Deep-Dive with AI

Search across all available documentation for this part.

DP-102ZL3-M-P

Active

Panasonic Industrial Automation Sales

SENSOR DIGITAL PRESSURE PNP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DP-102ZL3-M-P

Applications	Industrial Automation
Maximum Pressure [Max]	1500 kPa
Maximum Pressure [Max]	217.56 PSI
Operating Pressure [Max]	145.04 PSI
Operating Pressure [Max]	10 bar
Operating Pressure [Min]	-14.5 PSI
Operating Pressure [Min]	-1 bar
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Output Type	PNP - Open Collector
Package / Case	Module Box with Display
Port Size	Female - M5
Port Style	Threaded
Pressure Type	Gauge
Termination Style	Cable
Voltage - Supply [Max]	24 V
Voltage - Supply [Min]	12 V

DP-102 Series

Part	Package / Case	Pressure Type	Maximum Pressure [Min]	Maximum Pressure [Max]	Maximum Pressure [Min]	Maximum Pressure [Max]	Output Type	Applications	Port Style	Port Size	Port Size	Voltage - Supply [Min]	Voltage - Supply [Max]	Termination Style	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Port Size [custom]	Port Size [custom]	Port Size [custom]	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Min]	Operating Pressure [Max]
Panasonic Industrial Automation Sales DP-102-J	Module	Vented Gauge	-150 kPa	217.56 PSI	-21.76 PSI	1500 kPa	NPN - Open Collector	Industrial Automation	Threaded	1/4 M5	6.35 mm	12 V	24 V	Connector	-10 °C	50 °C
Panasonic Industrial Automation Sales DP-102-E-P-J	Module	Vented Gauge	-150 kPa	217.56 PSI	-21.76 PSI	1500 kPa	PNP - Open Collector	Industrial Automation	Threaded	M5	3.18 mm	12 V	24 V	Connector	-10 °C	50 °C
Panasonic Industrial Automation Sales DP-102-M-P	Module Box with Display	Vented Gauge	-150 kPa	217.56 PSI	-21.76 PSI	1500 kPa	PNP - Open Collector	Industrial Automation	Threaded	Female - M5		12 V	24 V	Connector	-10 °C	50 °C
Panasonic Industrial Automation Sales DP-102A-E-P-J	Module	Vented Gauge	-150 kPa	217.56 PSI	-21.76 PSI	1500 kPa	Analog Current/Voltage PNP - Open Collector	Industrial Automation	Threaded	M5	3.18 mm	12 V	24 V	Connector	-10 °C	50 °C
Panasonic Industrial Automation Sales DP-102A-J	Module	Vented Gauge	-150 kPa	217.56 PSI	-21.76 PSI	1500 kPa	Analog Current/Voltage NPN - Open Collector	Industrial Automation	Threaded			12 V	24 V	Connector	-10 °C	50 °C	M5	3.18 mm	1/8"
Panasonic Industrial Automation Sales DP-102-E-P	Module	Vented Gauge	-150 kPa	217.56 PSI	-21.76 PSI	1500 kPa	PNP - Open Collector	Industrial Automation	Threaded	M5	3.18 mm	12 V	24 V	Connector	-10 °C	50 °C
Panasonic Industrial Automation Sales DP-102A-M	Module	Vented Gauge	-150 kPa	217.56 PSI	-21.76 PSI	1500 kPa	Analog Current/Voltage NPN - Open Collector	Industrial Automation	Threaded	Female - M5		12 V	24 V	Connector	-10 °C	50 °C
Panasonic Industrial Automation Sales DP-102A-N-P-J	Module	Vented Gauge	-150 kPa	217.56 PSI	-21.76 PSI	1500 kPa	Analog Current/Voltage PNP - Open Collector	Industrial Automation	Threaded	M5		12 V	24 V	Connector	-10 °C	50 °C
Panasonic Industrial Automation Sales DP-102ZL3-M-P	Module Box with Display	Gauge		217.56 PSI		1500 kPa	PNP - Open Collector	Industrial Automation	Threaded	Female - M5		12 V	24 V	Cable	-10 °C	50 °C				-14.5 PSI	145.04 PSI	-1 bar	10 bar
Panasonic Industrial Automation Sales DP-102-N-P-J	Module	Vented Gauge	-150 kPa	217.56 PSI	-21.76 PSI	1500 kPa	PNP - Open Collector	Industrial Automation	Threaded	M5		12 V	24 V	Connector	-10 °C	50 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 101.06
		10	$ 84.22
		25	$ 81.41
		100	$ 78.60

Description

General part information

DP-102 Series

SENSOR DIGITAL PRESSURE PNP
