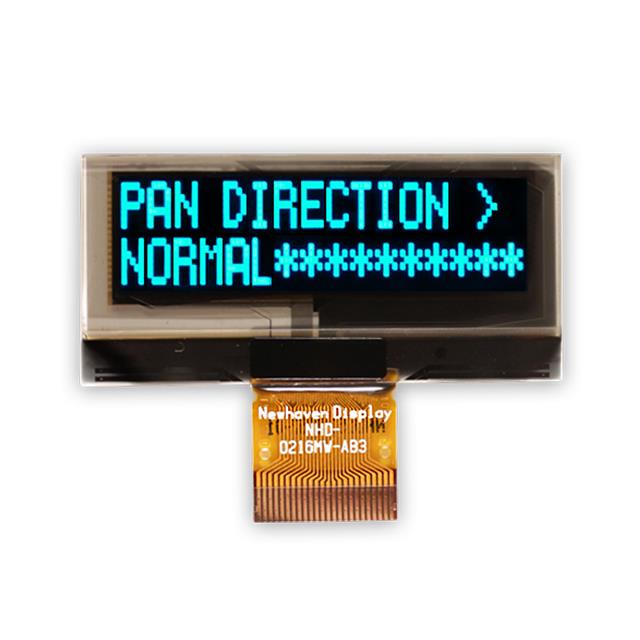

Specification	NHD-0216MW-AB3

Background Color	Black
Backlight	Without Backlight
Character Height	4.45 mm
Character Height (Dots)	8 Dots
Character Width	1.82 mm
Character Width (Dots)	5 Dots
Controller Type	US2066
Display Columns	16
Display Mode	Passive
Display Rows	2
Display Type	OLED
Dot Size Height	0.53 mm
Dot Size Width	0.34 mm
Interface	Parallel, Serial, I2C
Number of Characters	32 characters
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Outline Height	1.6 mm
Outline Length	41.4 mm
Outline Width	19.9 mm
Text Color	Blue
Viewing Area Length	36.22 mm
Viewing Area Width	11.4 mm
Voltage - Supply (Maximum)	5.5 V
Voltage - Supply (Minimum)	2.4 V

NHD-0216 Series

...

Part	Dot Size Width	Dot Size Height	Character Width (Dots)	Character Height (Dots)	Controller Type	Display Rows	Display Columns	Text Color	Number of Characters	Character Width	Character Height	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Display Type	Outline Width	Outline Height	Outline Length	Viewing Area Width	Viewing Area Length	Interface	Display Mode	Operating Temperature (Max)	Operating Temperature (Min)	Backlight Type	Backlight Color	Background Color	Backlight
Newhaven Display Intl NHD-0216K1Z-FSW-FTW-FB1	0.56 mm	0.61 mm	5 Dots	8 Dots	SPLC780D OR ST7066U	2	16	Black	32 characters	3 mm	5.23 mm	4.7 V	5.5 V	FSTN - Film Super-Twisted Nematic	36 mm	13.5 mm	80 mm	16.4 mm	64.5 mm	Parallel	Transflective	70 °C	-20 °C	LED	White	White
Newhaven Display Intl NHD-0216K1Z-FL-GBW	0.56 mm	0.61 mm	5 Dots	8 Dots	SPLC780D OR ST7066U	2	16	Blue	32 characters	3 mm	5.23 mm	4.7 V	5.5 V	STN - Super-Twisted Nematic	36 mm	13.5 mm	80 mm	16.4 mm	64.5 mm	Parallel	Transflective	70 °C	-20 °C	LED	Green Yellow	Green
Newhaven Display Intl NHD-0216BZ-FL-YBW	0.56 mm	0.61 mm	5 Dots	8 Dots	SPLC780D OR ST7066U	2	16	Blue	32 characters	3 mm	5.23 mm	4.7 V	5.5 V	STN - Super-Twisted Nematic	44 mm	13.5 mm	84 mm	16.4 mm	64.5 mm	Parallel	Transflective	70 °C	-20 °C	LED	Green Yellow	Green
Newhaven Display Intl NHD-0216K1Z-FSR-FBW-L	0.56 mm	0.61 mm	5 Dots	8 Dots	SPLC780D OR ST7066U	2	16	Black	32 characters	3 mm	5.23 mm	4.7 V	5.5 V	FSTN - Film Super-Twisted Nematic	36 mm	13.5 mm	80 mm	16.4 mm	64.5 mm	Parallel	Transflective	70 °C	-20 °C	LED	Red	Red
Newhaven Display Intl NHD-0216K1Z-FSA-FBW-L	0.56 mm	0.61 mm	5 Dots	8 Dots	SPLC780D OR ST7066U	2	16	Black	32 characters	3 mm	5.23 mm	4.7 V	5.5 V	FSTN - Film Super-Twisted Nematic	36 mm	13.5 mm	80 mm	16.4 mm	64.5 mm	Parallel	Transflective	70 °C	-20 °C	LED	Amber	Amber
Newhaven Display Intl NHD-0216K1Z-FSR-GBW-L	0.56 mm	0.61 mm	5 Dots	8 Dots	SPLC780D OR ST7066U	2	16	Blue	32 characters	3 mm	5.23 mm	4.7 V	5.5 V	STN - Super-Twisted Nematic	36 mm	13.5 mm	80 mm	16.4 mm	64.5 mm	Parallel	Transflective	70 °C	-20 °C	LED	Red	Red
Newhaven Display Intl NHD-0216K1Z-FSB-FBW-L	0.56 mm	0.61 mm	5 Dots	8 Dots	SPLC780D OR ST7066U	2	16	Black	32 characters	3 mm	5.23 mm	4.7 V	5.5 V	FSTN - Film Super-Twisted Nematic	36 mm	13.5 mm	80 mm	16.4 mm	64.5 mm	Parallel	Transflective	70 °C	-20 °C	LED	Blue	Blue
Newhaven Display Intl NHD-0216BZ-FL-GBW	0.56 mm	0.61 mm	5 Dots	8 Dots		2	16	Gray	32 characters	3 mm	5.23 mm	4.7 V	5.5 V	STN - Super-Twisted Nematic	44 mm	13.5 mm	84 mm	16.4 mm	64.5 mm	Parallel	Transflective	70 °C	-20 °C	LED	Green Yellow	Green
Newhaven Display Intl NHD-0216K1Z-NSA-FBW-L	0.56 mm	0.61 mm	5 Dots	8 Dots	SPLC780D OR ST7066U	2	16	Amber	32 characters	3 mm	5.23 mm	4.7 V	5.5 V	FSTN - Film Super-Twisted Nematic	36 mm	13.5 mm	80 mm	16.4 mm	64.5 mm	Parallel	Transmissive	70 °C	-20 °C	LED	Amber	Black
Newhaven Display Intl NHD-0216SZW-BY5	0.9 mm	1.06 mm	5 Dots	8 Dots		2	16	Yellow	32 characters	4.74 mm	8.9 mm	3 V	5.3 V	OLED	44 mm	10 mm	122 mm	24 mm	99 mm	Parallel/Serial	Passive	80 °C	-40 °C			Black	Without Backlight
