NHD-0216K1Z-FL-GBW
ActiveNewhaven Display Intl
LCD MOD 32DIG 16X2 TRANS YLW/GRN
Deep-Dive with AI
Search across all available documentation for this part.
NHD-0216K1Z-FL-GBW
ActiveNewhaven Display Intl
LCD MOD 32DIG 16X2 TRANS YLW/GRN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NHD-0216K1Z-FL-GBW |
|---|---|
| Background Color | Green |
| Character Format [x] | 5 Dots |
| Character Format [y] | 8 Dots |
| Character Size [x] | 3 mm |
| Character Size [y] | 5.23 mm |
| Controller Type | SPLC780D, ST7066U |
| Display Format [x] | 16 |
| Display Format [y] | 2 |
| Display Mode | Transflective |
| Display Type | STN - Super-Twisted Nematic |
| Dot Size [x] | 0.56 mm |
| Dot Size [y] | 0.61 mm |
| Interface | Parallel |
| Number of Characters | 32 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Outline L x W x H [x] | 80 mm |
| Outline L x W x H [y] | 36 mm |
| Outline L x W x H [z] | 13.5 mm |
| Text Color | Blue |
| Viewing Area [x] | 64.5 mm |
| Viewing Area [y] | 16.4 mm |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.7 V |
NHD-0216 Series
| Part | Dot Size [x] | Dot Size [y] | Interface | Display Format [y] | Display Format [x] | Character Format [y] | Character Format [x] | Display Mode | Voltage - Supply [Max] | Voltage - Supply [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Viewing Area [x] | Viewing Area [y] | Display Type | Controller Type | Number of Characters | Character Size [x] | Character Size [y] | Text Color | Background Color | Outline L x W x H [y] | Outline L x W x H [z] | Outline L x W x H [x] | Backlight | Character Size [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Newhaven Display Intl | 0.56 mm | 0.61 mm | Parallel | 2 | 16 | 8 Dots | 5 Dots | Transflective | 5.5 V | 4.7 V | -20 C | 70 °C | 64.5 mm | 16.4 mm | STN - Super-Twisted Nematic | SPLC780D ST7066U | 32 | 3 mm | 5.23 mm | Blue | Green | 36 mm | 13.5 mm | 80 mm | ||
Newhaven Display Intl | 0.56 mm | 0.61 mm | Parallel | 2 | 16 | 8 Dots | 5 Dots | Transflective | 5.5 V | 4.7 V | -20 C | 70 °C | 64.5 mm | 16.4 mm | STN - Super-Twisted Nematic | SPLC780D ST7066U | 32 | 3 mm | 5.23 mm | Blue | Green | 44 mm | 13.5 mm | 84 mm | ||
Newhaven Display Intl | 0.56 mm | 0.61 mm | Parallel | 2 | 16 | 8 Dots | 5 Dots | Transflective | 5.5 V | 4.7 V | -20 C | 70 °C | 64.5 mm | 16.4 mm | FSTN - Film Super-Twisted Nematic | SPLC780D ST7066U | 32 | 3 mm | 5.23 mm | Black | Red | 36 mm | 13.5 mm | 80 mm | LED - Red | |
Newhaven Display Intl | 0.56 mm | 0.61 mm | Parallel | 2 | 16 | 8 Dots | 5 Dots | Transflective | 5.5 V | 4.7 V | -20 C | 70 °C | 64.5 mm | 16.4 mm | FSTN - Film Super-Twisted Nematic | SPLC780D ST7066U | 32 | 3 mm | 5.23 mm | Black | Amber | 36 mm | 13.5 mm | 80 mm | LED - Amber | |
Newhaven Display Intl | 0.56 mm | 0.61 mm | Parallel | 2 | 16 | 8 Dots | 5 Dots | Transflective | 5.5 V | 4.7 V | -20 C | 70 °C | 64.5 mm | 16.4 mm | STN - Super-Twisted Nematic | SPLC780D ST7066U | 32 | 3 mm | 5.23 mm | Blue | Red | 36 mm | 13.5 mm | 80 mm | LED - Red | |
Newhaven Display Intl | 0.56 mm | 0.61 mm | Parallel | 2 | 16 | 8 Dots | 5 Dots | Transflective | 5.5 V | 4.7 V | -20 C | 70 °C | 64.5 mm | 16.4 mm | FSTN - Film Super-Twisted Nematic | SPLC780D ST7066U | 32 | 3 mm | 5.23 mm | Black | Blue | 36 mm | 13.5 mm | 80 mm | LED - Blue | |
Newhaven Display Intl | 0.56 mm | 0.61 mm | Parallel | 2 | 16 | 8 Dots | 5 Dots | Transflective | 5.5 V | 4.7 V | -20 C | 70 °C | 64.5 mm | 16.4 mm | STN - Super-Twisted Nematic | 32 | 3 mm | 5.23 mm | Gray | Green | 44 mm | 13.5 mm | 84 mm | |||
Newhaven Display Intl | 0.56 mm | 0.61 mm | Parallel | 2 | 16 | 8 Dots | 5 Dots | Transmissive | 5.5 V | 4.7 V | -20 C | 70 °C | 64.5 mm | 16.4 mm | FSTN - Film Super-Twisted Nematic | SPLC780D ST7066U | 32 | 3 mm | 5.23 mm | Amber | Black | 36 mm | 13.5 mm | 80 mm | LED - Amber | |
Newhaven Display Intl | 0.57 mm | 0.67 mm | 8-Bit I2C Parallel SPI | 2 | 16 | 8 Dots | 5 Dots | Passive | 5.5 V | 2.4 V | -40 °C | 85 °C | 58.22 mm | 13.52 mm | OLED | US2066 | 32 | 2.97 mm | Blue | Black | 24.5 mm | 2.5 mm | 76 mm | 5.57 mm | ||
Newhaven Display Intl | 0.56 mm | 0.61 mm | Parallel | 2 | 16 | 8 Dots | 5 Dots | Transmissive | 5.5 V | 4.7 V | -20 C | 70 °C | 64.5 mm | 16.4 mm | FSTN - Film Super-Twisted Nematic | SPLC780D ST7066U | 32 | 3 mm | 5.23 mm | Blue Green Red | Black | 36 mm | 13 mm | 80 mm | Blue Green LED Red |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 12.48 | |
| 5 | $ 11.73 | |||
| 10 | $ 10.98 | |||
| 50 | $ 10.36 | |||
| 100 | $ 9.86 | |||
| 250 | $ 9.36 | |||
| 500 | $ 8.99 | |||
Description
General part information
NHD-0216 Series

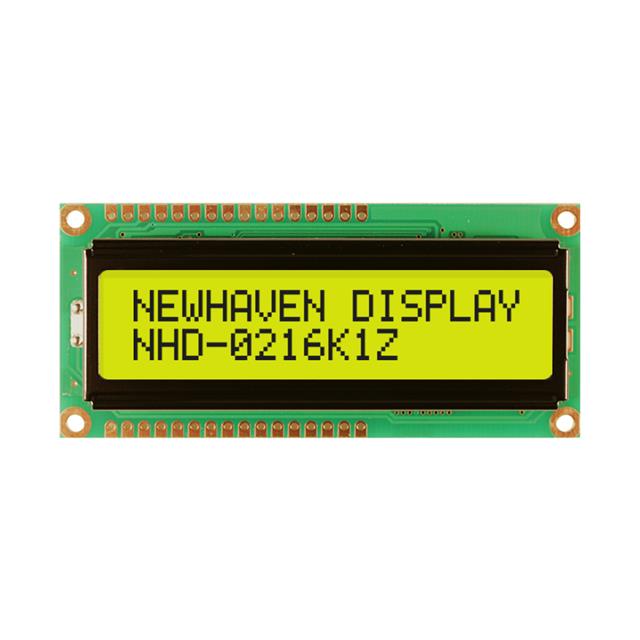

Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow/Green Parallel 80.00mm x 36.00mm x 13.50mm
