MTMM-142-02-L-D-070

Active

Samtec Inc.

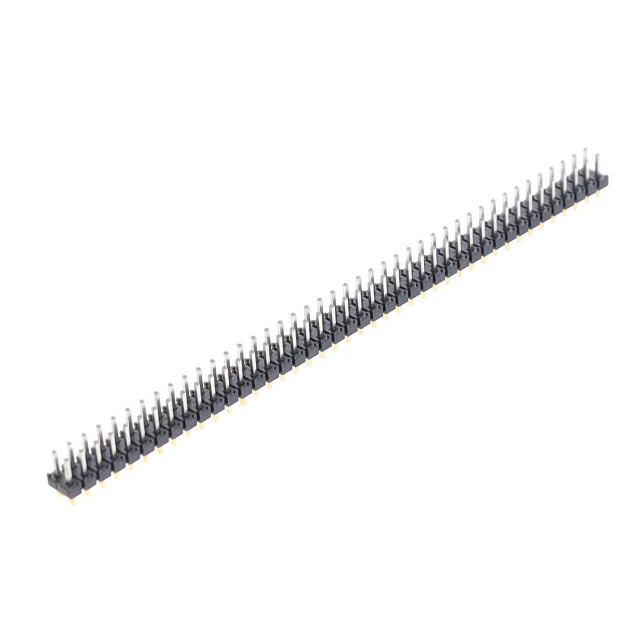

CONN UNSHROUDED HEADER HDR 84 POS 2MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MTMM-142-02-L-D-070

Active

Samtec Inc.

CONN UNSHROUDED HEADER HDR 84 POS 2MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MTMM-142-02-L-D-070

Connector Type	Cuttable, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	0.07 in
Contact Length - Mating	1.78 mm
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	1.5 mm
Insulation Height	0.059 "
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	84
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	6.48 mm
Overall Contact Length	0.255 in
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

MTMM-142 Series

Part	Insulation Color	Material Flammability Rating	Contact Material	Number of Positions	Number of Rows	Insulation Height	Insulation Height	Insulation Material	Contact Type	Termination	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Style	Operating Temperature [Max]	Operating Temperature [Min]	Overall Contact Length	Overall Contact Length	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Current Rating (Amps)	Shrouding	Contact Shape	Mounting Type	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. MTMM-142-08-T-D-316	Black	UL94 V-0	Phosphor Bronze	84	2	1.5 mm	0.059 "	Liquid Crystal Polymer (LCP)	Male Pin	Solder	0.079 in	2 mm	8.03 mm	0.316 "	All	Board to Board Cable	105 ░C	-55 °C	12.09 mm	0.476 in	Cuttable Header	0.079 in	2 mm	Push-Pull	3 A	Unshrouded	Square	Through Hole	0.101 in	2.57 mm	Tin
Samtec Inc. MTMM-142-02-L-D-070	Black	UL94 V-0	Phosphor Bronze	84	2	1.5 mm	0.059 "	Liquid Crystal Polymer (LCP)	Male Pin	Solder	0.079 in	2 mm	1.78 mm	0.07 in	All	Board to Board Cable	125 °C	-55 °C	6.48 mm	0.255 in	Cuttable Header	0.079 in	2 mm	Push-Pull	3 A	Unshrouded	Square	Through Hole		3.2 mm	Tin	Gold	10 çin	0.25 çm	0.126 in
Samtec Inc. MTMM-142-05-G-Q-190	Black	UL94 V-0	Phosphor Bronze	168		1.5 mm	0.059 "	Liquid Crystal Polymer (LCP)	Male Pin	Solder	0.079 in	2 mm	4.83 mm	0.19 "	All	Board to Board Cable	125 °C	-55 °C	9.58 mm	0.377 in	Cuttable Header	0.079 in	2 mm	Push-Pull	3 A	Unshrouded	Square	Through Hole	0.128 "	3.25 mm	Gold	Gold	20 µin	0.51 µm		3 µin	0.076 µm
