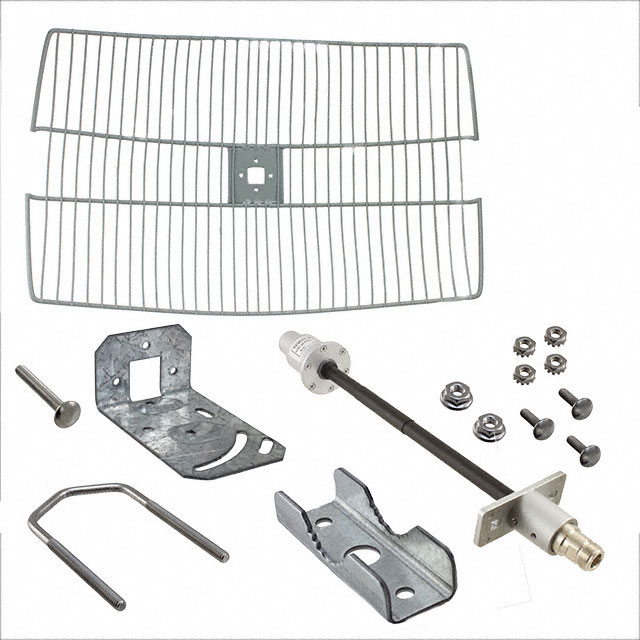

GD57-25
ObsoleteTE Connectivity Raychem Cable Protection
RF ANT 5.7GHZ GRID N FEM BRKT MT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GD57-25 |
|---|---|
| Antenna Type | Parabolic Grid |
| Applications | WiMax™, WLAN |
| Frequency (Center/Band) | 5.7 GHz |
| Frequency Group | SHF |
| Frequency Range [Max] | 5.725 GHz |
| Frequency Range [Min] | 5.47 GHz |
| Gain | 25 dB |
| Height (Max) [Max] | 24 in |
| Height (Max) [Max] | 609.6 mm |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 100 W |
| RF Family/Standard | WiFi |
| Termination | N Type Female |
| VSWR | 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
GD57 Series
RF ANTENNA WiMax™, WLAN Parabolic Grid N Type Female Bracket Mount
