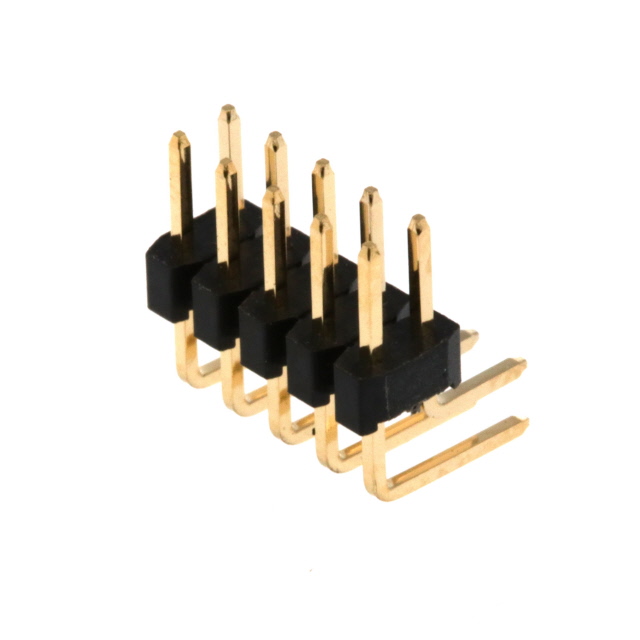

PR20C05HBDN

Active

METZ CONNECT USA Inc.

PIN HEADER, THR, DUAL ROW, 2.00

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

PIN HEADER, THR, DUAL ROW, 2.00

Technical Specifications

Parameters and characteristics for this part

Specification	PR20C05HBDN

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Mating	0.154 in
Contact Length - Mating	3.91 mm
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Copper Zinc
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.079 in
Insulation Height	2 mm
Insulation Material	Polyethylene
Mounting Type	Through Hole, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Unshrouded
Termination	Solder

PIN HEADER, THR, DUAL ROW, 2.00

Part	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Number of Rows	Contact Finish Thickness - Mating	Shrouding	Termination	Contact Length - Post [x]	Contact Length - Post	Connector Type	Insulation Material	Contact Finish - Mating	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Number of Positions Loaded	Contact Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Material	Fastening Type	Contact Length - Mating	Contact Length - Mating	Insulation Color	Insulation Height	Insulation Height
METZ CONNECT USA Inc. PR20C05HBDN	105 ░C	-55 °C	Square	2	Flash	Unshrouded	Solder	0.11 in	2.79 mm	Header	Polyethylene	Gold	10	0.079 in	2 mm	Through Hole, Right Angle	All	Male Pin	0.079 in	2 mm	Copper Zinc	Push-Pull	0.154 in	3.91 mm	Black	0.079 in	2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 10 position 0.079" (2.00mm)
