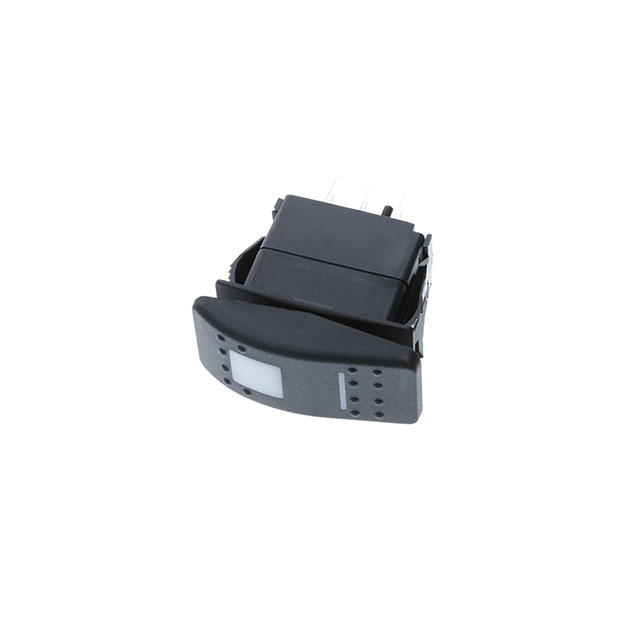

SRD1-1F-DC-1-BRR
ActiveSwitch Components
SWITCH ROCKER SPDT 21A 14V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SRD1-1F-DC-1-BRR
ActiveSwitch Components
SWITCH ROCKER SPDT 21A 14V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SRD1-1F-DC-1-BRR |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Convex (Reverse V) - Illuminated |
| Circuit | SPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 21 A |
| Electrical Life | 6000 Cycles |
| Illumination Type, Color | Red, LED |
| Illumination Voltage (Nominal) | 14 VDC |
| Ingress Protection | IP56 - Dust Protected, Water Resistant |
| Mechanical Life | 10000 Steps |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [x] | 36.8 mm |
| Panel Cutout Dimensions [y] | 21.2 mm |
| Switch Function | On-Off-On |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - DC | 14 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.49 | |
| 10 | $ 11.99 | |||
| 25 | $ 11.53 | |||
| 50 | $ 10.90 | |||
| 100 | $ 10.37 | |||
| 250 | $ 9.85 | |||
| 500 | $ 8.96 | |||
| 1000 | $ 8.20 | |||
Description
General part information
SRD1-1F Series
Rocker Switch SPDT 21A (DC) Panel Mount, Snap-In
