ADZS22105
ActivePanasonic Electric Works
RELAY GEN PURPOSE SPST 90A 5V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ADZS22105 |
|---|---|
| Coil Current | 600 mA |
| Coil Resistance | 8.3 Ohms |
| Coil Type | Latching, Dual Coil |
| Coil Voltage | 5 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 90 A |
| Load - Max Switching | 24840 VA |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 3.5 VDC |
| Operate Time | 20 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 20 ms |
| Switching Voltage [Max] | 276 VAC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 20.30 | |
| 20 | $ 19.29 | |||
| 40 | $ 17.26 | |||
| 80 | $ 16.24 | |||
| 240 | $ 15.23 | |||
| 440 | $ 14.21 | |||
Description
General part information
ADZS22 Series

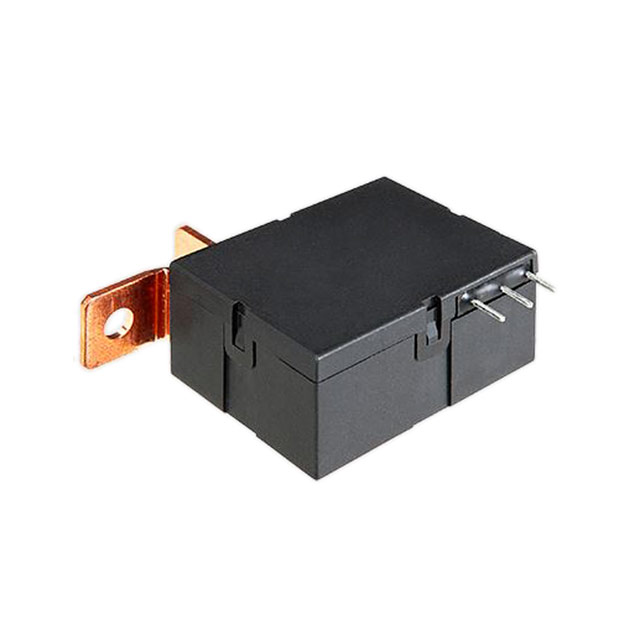

General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Chassis Mount
