74LVC2G86HD4-7
ActiveXOR (EXCLUSIVE OR), DUAL, 2 INPUT, 8 PINS, X2-DFN, 74LVC2G86
Deep-Dive with AI
Search across all available documentation for this part.
74LVC2G86HD4-7
ActiveXOR (EXCLUSIVE OR), DUAL, 2 INPUT, 8 PINS, X2-DFN, 74LVC2G86
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 74LVC2G86HD4-7 |
|---|---|
| Current - Output High, Low [x] | 32 mA |
| Current - Output High, Low [y] | 32 mA |
| Current - Quiescent (Max) [Max] | 40 µA |
| Input Logic Level - High [Max] | 3.85 V |
| Input Logic Level - High [Min] | 1.07 V |
| Input Logic Level - Low [Max] | 1.65 V |
| Input Logic Level - Low [Min] | 0.58 V |
| Logic Type | XOR (Exclusive OR) |
| Max Propagation Delay @ V, Max CL | 5.6 ns |
| Mounting Type | Surface Mount |
| Number of Circuits | 2 |
| Number of Inputs | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |

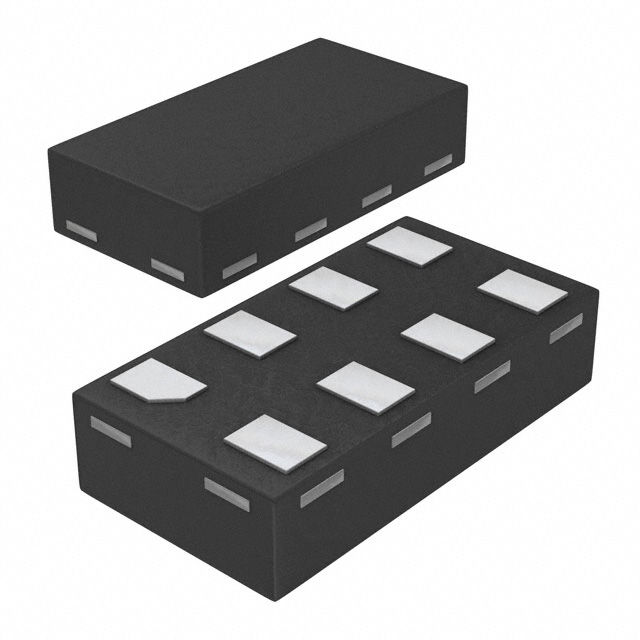

| Package / Case | 8-XFDFN |
| Supplier Device Package | X2-DFN2010-8 |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 1.65 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 5000 | $ 0.08 | |
| 10000 | $ 0.08 | |||
| 15000 | $ 0.07 | |||
| 25000 | $ 0.07 | |||
| 35000 | $ 0.07 | |||
| 50000 | $ 0.06 | |||
| 125000 | $ 0.06 | |||
Description
General part information
74LVC2G86 Series
The 74LVC2G86 is a dual 2-input EXCLUSIVE OR gate with a standard push-pull output. The device is designed for operation with a power supply range of 1.65V to 5.5V. The inputs are tolerant to 5.5V allowing this device to be used in a mixed voltage environment. The device is fully specified for partial power down applications using IOFF. The IOFFcircuitry disables the output preventing damaging current backflow when the device is powered down.
