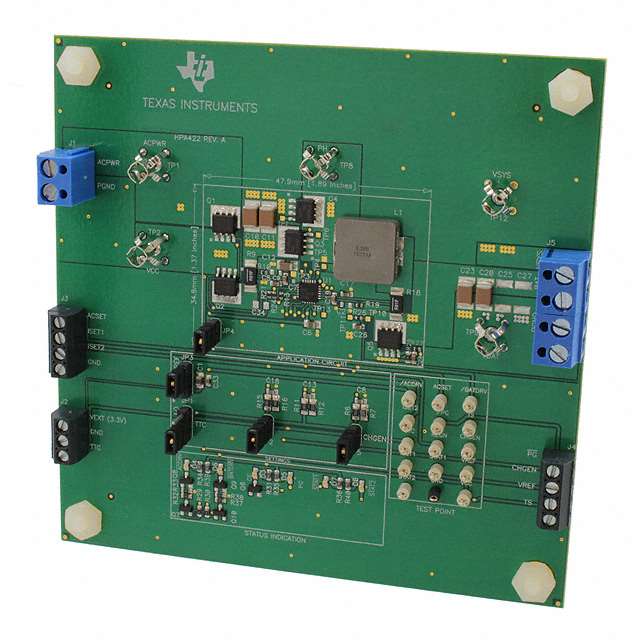

BQ24630EVM
ActiveEVAL MODULE FOR BQ24630
Deep-Dive with AI
Search across all available documentation for this part.
BQ24630EVM
ActiveEVAL MODULE FOR BQ24630
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ24630EVM | BQ24630 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Iron Phosphate |
| Battery Pack Voltage | - | 26 V |
| Charge Current - Max | - | 10 A |
| Contents | Board(s) | Board(s) |
| Current - Charging | - | Constant - Programmable |
| Embedded | False | False |
| Fault Protection | - | Over Current, Over Voltage, Short Circuit, Over Temperature |
| Function | Battery Charger | Battery Charger |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 1 |
| Number of Cells | - | 7 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 24-VFQFN Exposed Pad |
| Primary Attributes | 26 V | 26 V |
| Primary Attributes | Multi Cell-Li-ion / Li-Polymer | Multi Cell-Li-ion / Li-Polymer |
| Programmable Features | - | Current, Timer |
| Secondary Attributes | On-Board LEDs | On-Board LEDs |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 24-VQFN (4x4) |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ24630 | BQ24630 |
| Voltage - Supply (Max) | - | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 178.80 | |
BQ24630 Series
Standalone 1-7 cell Buck battery charge controller for LiFePO4 batteries with system power
| Part | Supplier Device Package | Fault Protection | Battery Pack Voltage [Max] | Voltage - Supply (Max) [Max] | Battery Chemistry | Programmable Features | Charge Current - Max [Max] | Mounting Type | Number of Cells [Min] | Number of Cells [Max] | Current - Charging | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Primary Attributes | Primary Attributes | Supplied Contents | Embedded | Contents | Type | Function | Utilized IC / Part | Secondary Attributes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ24630RGER | 24-VQFN (4x4) | Over Current, Over Temperature, Over Voltage, Short Circuit | 26 V | 28 V | Lithium Iron Phosphate | Current, Timer | 10 A | Surface Mount | 1 | 7 | Constant - Programmable | 85 °C | -40 °C | 24-VFQFN Exposed Pad | |||||||||
Texas Instruments BQ24630RGET | 24-VQFN (4x4) | Over Current, Over Temperature, Over Voltage, Short Circuit | 26 V | 28 V | Lithium Iron Phosphate | Current, Timer | 10 A | Surface Mount | 1 | 7 | Constant - Programmable | 85 °C | -40 °C | 24-VFQFN Exposed Pad | |||||||||
Texas Instruments BQ24630EVM | 26 V | Multi Cell-Li-ion / Li-Polymer | Board(s) | Board(s) | Power Management | Battery Charger | BQ24630 | On-Board LEDs |
Description
General part information
BQ24630 Series
The bq24630 is a highly integrated lithium phosphate switched-mode battery charge controller. The device offers a constant-frequency synchronous switching PWM controller with high-accuracy charge current and voltage regulation, charge preconditioning, termination, adapter current regulation, and charge status monitoring.
The bq24630 charges the battery in three phases: preconditioning, constant current, and constant voltage. Charge is terminated when the current reaches a minimum user-selectable level. A programmable charge timer provides a safety backup. The bq24630 automatically restarts the charge cycle if the battery voltage falls below an internal threshold and enters a low quiescent current sleep mode when the input voltage falls below the battery voltage.
The bq24630 is a highly integrated lithium phosphate switched-mode battery charge controller. The device offers a constant-frequency synchronous switching PWM controller with high-accuracy charge current and voltage regulation, charge preconditioning, termination, adapter current regulation, and charge status monitoring.
