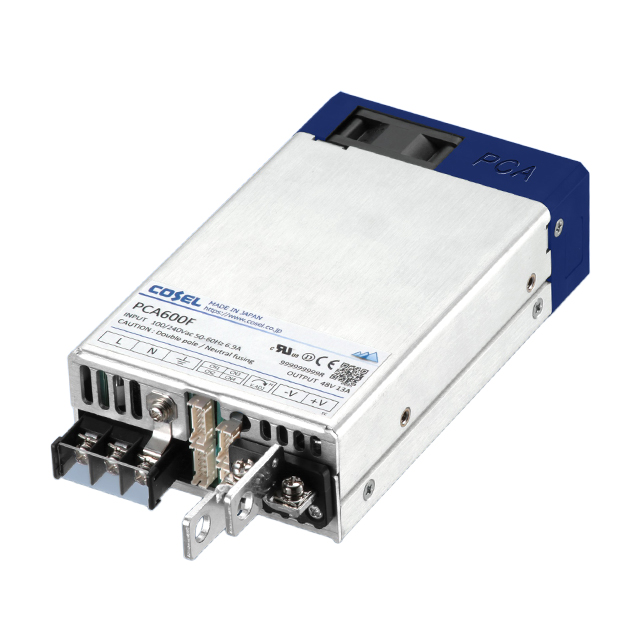

PCA600F-48

Active

Cosel USA, Inc.

AC/DC CONVERTER 48V 624W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PCA600F-48

Active

Cosel USA, Inc.

AC/DC CONVERTER 48V 624W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PCA600F-48

Applications	ITE (Commercial), Medical
Approval Agency	CSA, D-Mark, cURus, UL, CE
Current - Output 1	13 A
Efficiency	93 %
Features	Universal Input, Remote Sense, Remote On/Off, Adjustable Output, PFC
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Power (Watts)	624 W
Size / Dimension [x]	5.98 "
Size / Dimension [x]	152 mm
Size / Dimension [y]	89 mm
Size / Dimension [y]	3.5 in
Size / Dimension [z]	1.61 "
Size / Dimension [z]	41 mm
Standard Number	60950-1, 60601-1, 62368-1
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	85 VAC, 88 VDC
Voltage - Isolation	4000 V
Voltage - Output 1	48 V

PCA600F Series

Part	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Applications	Power (Watts)	Number of Outputs	Standard Number	Features	Current - Output 1	Approval Agency	Mounting Type	Voltage - Isolation	Voltage - Output 1	Type	Voltage - Input [Max]	Voltage - Input [Min]
Cosel USA, Inc. PCA600F-48-TP2	93 %	-20 C	70 °C	5.98 "	1.61 "	89 mm	41 mm	152 mm	3.5 in	ITE (Commercial) Medical	624 W	1	60601-1 60950-1 62368-1	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	13 A	CE CSA cURus D-Mark UL	Chassis Mount	4000 V	48 V	Enclosed
Cosel USA, Inc. PCA600F-12-T	92 %	-20 C	70 °C	5.98 "	1.61 "	89 mm	41 mm	152 mm	3.5 in	ITE (Commercial) Medical	636 W	1	60601-1 60950-1 62368-1	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	53 A	CE CSA cURus D-Mark UL	Chassis Mount	4000 V	12 V	Enclosed	264 VAC 370 VDC	85 VAC 88 VDC
Cosel USA, Inc. PCA600F-32-TP2	93 %	-20 C	70 °C	5.98 "	1.61 "	89 mm	41 mm	152 mm	3.5 in	ITE (Commercial) Medical	640 W	1	60601-1 60950-1 62368-1	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	20 A	CE CSA cURus D-Mark UL	Chassis Mount	4000 V	32 V	Enclosed
Cosel USA, Inc. PCA600F-15-TP2	92 %	-20 C	70 °C	5.98 "	1.61 "	89 mm	41 mm	152 mm	3.5 in	ITE (Commercial) Medical	645 W	1	60601-1 60950-1 62368-1	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	43 A	CE CSA cURus D-Mark UL	Chassis Mount	4000 V	15 V	Enclosed
Cosel USA, Inc. PCA600F-15-T	92 %	-20 C	70 °C	5.98 "	1.61 "	89 mm	41 mm	152 mm	3.5 in	ITE (Commercial) Medical	645 W	1	60601-1 60950-1 62368-1	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	43 A	CE CSA cURus D-Mark UL	Chassis Mount	4000 V	15 V	Enclosed	264 VAC 370 VDC	85 VAC 88 VDC
Cosel USA, Inc. PCA600F-24-P2	93 %	-20 C	70 °C	5.98 "	1.61 "	89 mm	41 mm	152 mm	3.5 in	ITE (Commercial) Medical	600 W	1	60601-1 60950-1 62368-1	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	27 A	CE CSA cURus D-Mark UL	Chassis Mount	4000 V	24 V	Enclosed
Cosel USA, Inc. PCA600F-48	93 %	-20 C	70 °C	5.98 "	1.61 "	89 mm	41 mm	152 mm	3.5 in	ITE (Commercial) Medical	624 W	1	60601-1 60950-1 62368-1	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	13 A	CE CSA cURus D-Mark UL	Chassis Mount	4000 V	48 V	Enclosed	264 VAC 370 VDC	85 VAC 88 VDC
Cosel USA, Inc. PCA600F-12-TP2	92 %	-20 C	70 °C	5.98 "	1.61 "	89 mm	41 mm	152 mm	3.5 in	ITE (Commercial) Medical	636 W	1	60601-1 60950-1 62368-1	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	53 A	CE CSA cURus D-Mark UL	Chassis Mount	4000 V	12 V	Enclosed
Cosel USA, Inc. PCA600F-24-TP2	93 %	-20 C	70 °C	5.98 "	1.61 "	89 mm	41 mm	152 mm	3.5 in	ITE (Commercial) Medical	648 W	1	60601-1 60950-1 62368-1	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	27 A	CE CSA cURus D-Mark UL	Chassis Mount	4000 V	24 V	Enclosed
Cosel USA, Inc. PCA600F-15-W1	92 %	-20 C	70 °C	5.98 "	1.61 "	89 mm	41 mm	152 mm	3.5 in	ITE (Commercial) Medical	645 W	1	60601-1 60950-1 62368-1	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	43 A	CE CSA cURus D-Mark UL	Chassis Mount	4000 V	15 V	Enclosed	264 VAC 370 VDC	85 VAC 88 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 505.08
		5	$ 488.78
		10	$ 472.49

Description

General part information

PCA600F Series

Enclosed AC DC Converters 1 Output 48V 85 ~ 264 VAC, 88 ~ 370 VDC Input
