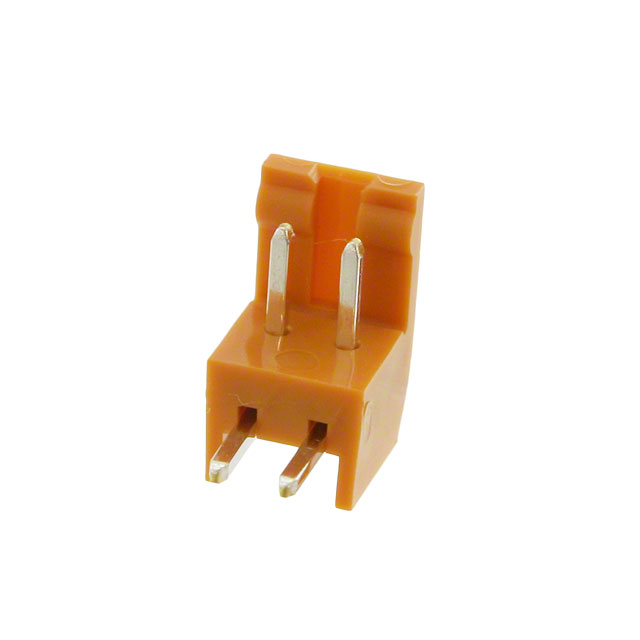

IL-G-2P-S3L2-SA

Active

JAE Electronics

BOARD CONNECTOR, 2 CONTACT(S), 1 ROW(S), MALE, RIGHT ANGLE, 0.098 INCH PITCH, SOLDER TERMINAL, LOCKING, BROWN INSULATOR,

Search across all available documentation for this part.

Active

JAE Electronics

BOARD CONNECTOR, 2 CONTACT(S), 1 ROW(S), MALE, RIGHT ANGLE, 0.098 INCH PITCH, SOLDER TERMINAL, LOCKING, BROWN INSULATOR,

Technical Specifications

Parameters and characteristics for this part

Specification	IL-G-2P-S3L2-SA

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	4 mm
Contact Length - Mating	0.157 in
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Friction Lock
Insulation Color	Brown
Insulation Height	6 mm
Insulation Height	0.236 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Insulation Color	Current Rating (Amps)	Fastening Type	Number of Rows	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Contact Type	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Insulation Material	Number of Positions	Mated Stacking Heights	Mounting Type	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Connector Type	Contact Material	Termination	Shrouding	Overall Contact Length	Overall Contact Length	Style	Contact Shape
JAE Electronics IL-G-2P-S3T2-SA	85 °C	-40 °C	UL94 V-0	Brown	3 A	Friction Lock	1	4 mm	0.157 in	All	Male Pin	Tin	3.5 mm	0.138 in	Polyamide (PA66) Nylon 6/6	2	10 mm	Through Hole	2.5 mm	0.098 in	0.28 in	7.1 mm	Header	Brass	Solder	Shrouded - 1 Wall	0.378 in	9.6 mm	Board to Cable/Wire	Square
JAE Electronics IL-G-2P-S3L2-SA	85 °C	-40 °C	UL94 V-0	Brown	3 A	Friction Lock	1	4 mm	0.157 in	All	Male Pin	Tin	3.5 mm	0.138 in	Polyamide (PA66) Nylon 6/6	2		Through Hole Right Angle	2.5 mm	0.098 in	0.236 in	6 mm	Header	Brass	Solder	Shrouded - 1 Wall			Board to Cable/Wire	Square

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 2 position 0.098" (2.50mm)
