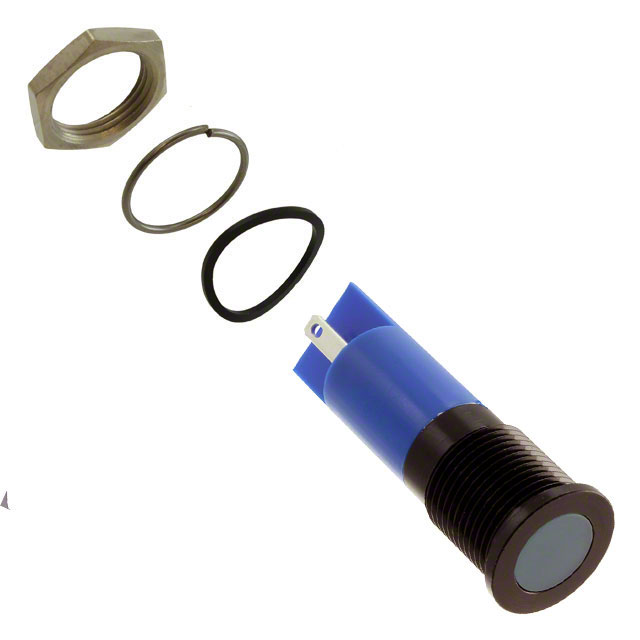

Q14F1BXXHB24E
ActiveAPEM
LED INDICATOR 14MM ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Q14F1BXXHB24E
ActiveAPEM
LED INDICATOR 14MM ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | Q14F1BXXHB24E |
|---|---|
| Ingress Protection | IP67 |
| Lamp Color | Blue |
| Lens Color | Blue |
| Lens Size [diameter] | 10 mm |
| Lens Transparency | Diffused |
| Panel Cutout Dimensions | 13.97 mm |
| Panel Cutout Dimensions | 0.55 in |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
| Type | LED |
| Voltage | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
Q14F1BXXHB Series
LED Panel Indicator Blue Diffused 24V 20mA Quick Connect - 0.110" (2.8mm)
