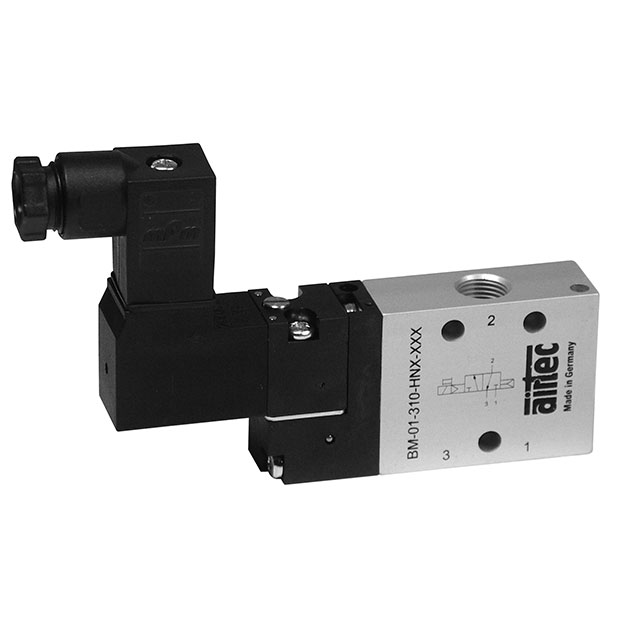

BM-91-310-HNR-122

Active

AIRTEC Pneumatics

3/2-WAY NC, ELECTRICALLY OPERATE

Search across all available documentation for this part.

Active

AIRTEC Pneumatics

3/2-WAY NC, ELECTRICALLY OPERATE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BM-91-310-HNR-122	BM-91-310 Series

Features	24 VDC	24 VDC
Features	-	Supply Voltage 12VDC, Supply Voltage 24VAC
Fluid Type	Air, Inert Gas	Air, Inert Gas
Function	Normally Closed	Normally Closed, 2 x 3/2
Function	1.5	1.5
Function	-	True
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mounting Type	Chassis Mount	Chassis Mount
Operating Pressure [Max]	116 PSI	116 PSI
Operating Pressure [Max]	8 bar	8 bar
Operating Pressure [Min]	2 bar	2 bar
Operating Pressure [Min]	30 PSI	30 PSI
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Min]	-5 °C	-5 °C
Type	Solenoid Valve	Solenoid Valve

3/2-WAY NC, ELECTRICALLY OPERATE

Part	Ingress Protection	Function	Function	Operating Temperature [Max]	Operating Temperature [Min]	Operating Pressure [Max]	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Min]	Features	Fluid Type	Type	Mounting Type	Features
AIRTEC Pneumatics BM-91-310-HNR-122	IP65 - Dust Tight, Water Resistant	Normally Closed	1.5	50 °C	-5 °C	116 PSI	2 bar	8 bar	30 PSI	24 VDC	Air, Inert Gas	Solenoid Valve	Chassis Mount
AIRTEC Pneumatics BM-91-310-HNR-131	IP65 - Dust Tight, Water Resistant	Normally Closed	1.5	50 °C	-5 °C	116 PSI	2 bar	8 bar	30 PSI		Air, Inert Gas	Solenoid Valve	Chassis Mount	Supply Voltage 12VDC
AIRTEC Pneumatics BM-91-310/2-HNR-152	IP65 - Dust Tight, Water Resistant	2 x 3/2		50 °C	-5 °C	116 PSI	2 bar	8 bar	30 PSI		Air, Inert Gas	Solenoid Valve	Chassis Mount	Supply Voltage 24VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 73.65

General part information

3/2 Normally Closed Solenoid Valve Chassis Mount

Technical documentation and resources
