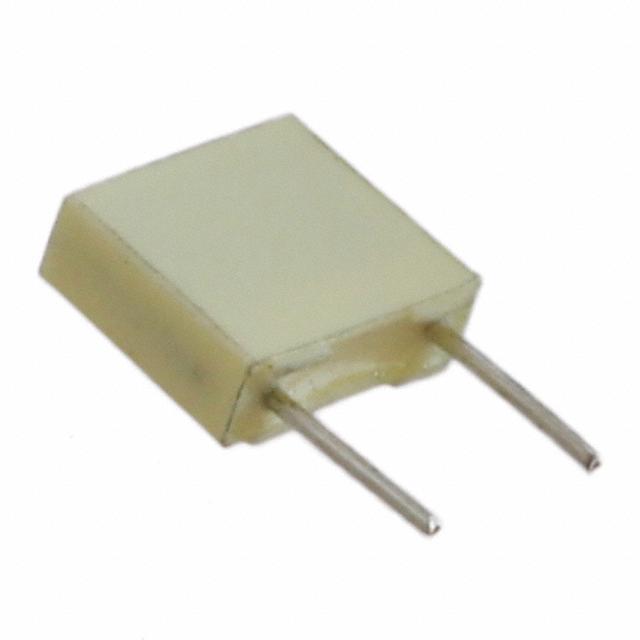

RSBEC0100ZA00M

Active

KEMET

CAP FILM 100PF 20% 100VDC RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP FILM 100PF 20% 100VDC RADIAL

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage Rating - DC	Applications	Tolerance	Termination	Package / Case	Voltage Rating - AC	Features	Dielectric Material	Capacitance	Ratings	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
KEMET RSBEC0100ZA00M	-55 °C	125 °C	Through Hole	100 V	Automotive	20 %	PC Pins	Radial	63 V	High Temperature	Polyester Metallized	100 pF	AEC-Q200
KEMET RSBEC2100CK00K	-55 °C	125 °C	Through Hole	100 V	Automotive	10 %	PC Pins	Radial	63 V	High Temperature	Polyester Metallized	10000 pF	AEC-Q200	5 mm	0.197 in	0.26 in	6.6 mm	7.2 mm	0.098 in	0.283 in	2.5 mm
KEMET RSBEC2470Z300K	-55 °C	125 °C	Through Hole	100 V	Automotive	10 %	PC Pins	Radial	63 V	High Temperature	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)		AEC-Q200	5 mm	0.197 in	0.26 in	6.6 mm	7.2 mm	0.098 in	0.283 in	2.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 pF Film Capacitor 63V 100V Polyester, Metallized Radial
