1846726

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 5 POS 5MM PITCH THROUGH HOLE HEADER

Search across all available documentation for this part.

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 5 POS 5MM PITCH THROUGH HOLE HEADER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 10.22
Sager	N/A	50	$ 12.03
		150	$ 11.61

General part information

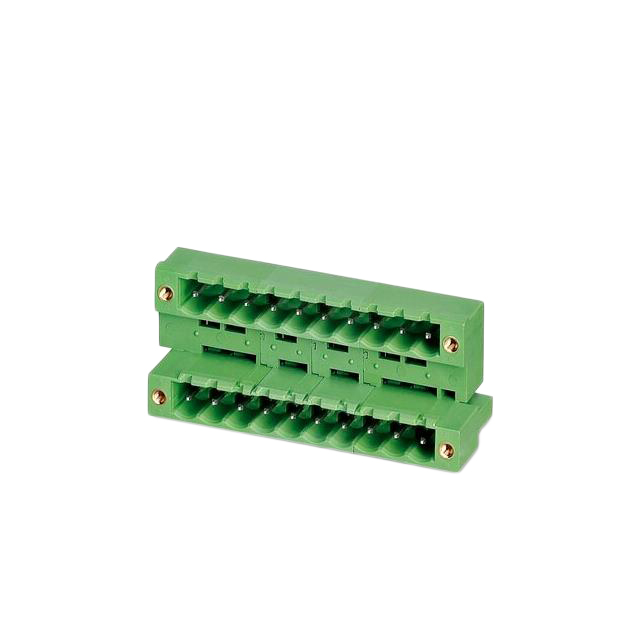

Pluggable Terminal Blocks 4 Pos 5mm pitch Through Hole Header

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1846726	MDSTB Series

Color	Green	Green, Gray
Contact Mating Finish	Tin	Tin
Contact Tail Length	3.5 mm	3.5 mm
Contact Tail Length	0.138 in	0.138 in
Current - IEC	10 A	10 A
Features	Mating Flange	Mating Flange, Interlocking (Side)
Header Orientation	90°, Right Angle	90°, Right Angle
Housing Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT), Polyamide (PA), Nylon
Insulation Height	0.933 in	0.933 - 1.122 in
Insulation Height	23.7 mm	23.7 - 28.5 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Levels	2	2
Number of Positions	10	8 - 26
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in
Positions Per Level	5	4 - 13
Termination Style	Solder	Solder
Type	Header, Male Pins, Shrouded (4 Side)	Header, Male Pins, Shrouded (4 Side), Header, Male Pins, Shrouded (2 Side)
Voltage - IEC	400 V	250 - 630 V
Voltage - UL	300 V	300 V

Pluggable Terminal Blocks 4 Pos 5mm pitch Through Hole Header

Part	Number of Levels	Mounting Type	Positions Per Level	Material Flammability Rating	Insulation Height	Insulation Height	Pitch [x]	Pitch [x]	Termination Style	Header Orientation	Voltage - IEC	Number of Positions	Current - IEC	Color	Contact Mating Finish	Features	Housing Material	Contact Tail Length	Contact Tail Length	Voltage - UL	Type
Phoenix Contact 1846726	2	Through Hole	5	UL94 V-0	0.933 in	23.7 mm	5 mm	0.197 in	Solder	90°, Right Angle	400 V	10	10 A	Green	Tin	Mating Flange	Polybutylene Terephthalate (PBT)	3.5 mm	0.138 in	300 V	Header, Male Pins, Shrouded (4 Side)
Phoenix Contact 1762800	2	Through Hole	13	UL94 V-0	1.122 in	28.5 mm	5 mm	0.197 in	Solder	90°, Right Angle	630 V	26	10 A	Green	Tin		Polyamide (PA), Nylon	3.5 mm	0.138 in	300 V	Header, Male Pins, Shrouded (4 Side)
Phoenix Contact 1726444	2	Through Hole	4		0.933 in	23.7 mm	5 mm	0.197 in	Solder	90°, Right Angle	250 V	8	10 A	Gray	Tin	Interlocking (Side)					Header, Male Pins, Shrouded (2 Side)
