LV5761V-TLM-E

Obsolete

Sanyo

STEP-DOWN SWITCHING REGULATOR

Search across all available documentation for this part.

Obsolete

Sanyo

STEP-DOWN SWITCHING REGULATOR

Technical Specifications

Parameters and characteristics for this part

Specification	LV5761V-TLM-E

Clock Sync	True
Control Features	Enable, Soft Start, Frequency Control, Current Limit
Frequency - Switching	125 kHz
Function	Step-Down
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Phases	1
Output Type	Transistor Driver
Package / Case	16-LSSOP
Supplier Device Package	16-SSOP
Synchronous Rectifier	True
Topology	Buck
Voltage - Supply (Vcc/Vdd) [Max]	42 V
Voltage - Supply (Vcc/Vdd) [Min]	8.5 V

STEP-DOWN SWITCHING REGULATOR

Part	Output Phases	Topology	Output Configuration	Clock Sync	Output Type	Supplier Device Package	Synchronous Rectifier	Frequency - Switching	Operating Temperature [Max]	Operating Temperature [Min]	Control Features	Number of Outputs	Function	Mounting Type	Package / Case	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]
Sanyo LV5761V-TLM-E	1	Buck	Positive		Transistor Driver	16-SSOP		125 kHz	85 °C	-40 °C	Current Limit, Enable, Frequency Control, Soft Start	1	Step-Down	Surface Mount	16-LSSOP	8.5 V	42 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	166	$ 1.81

General part information

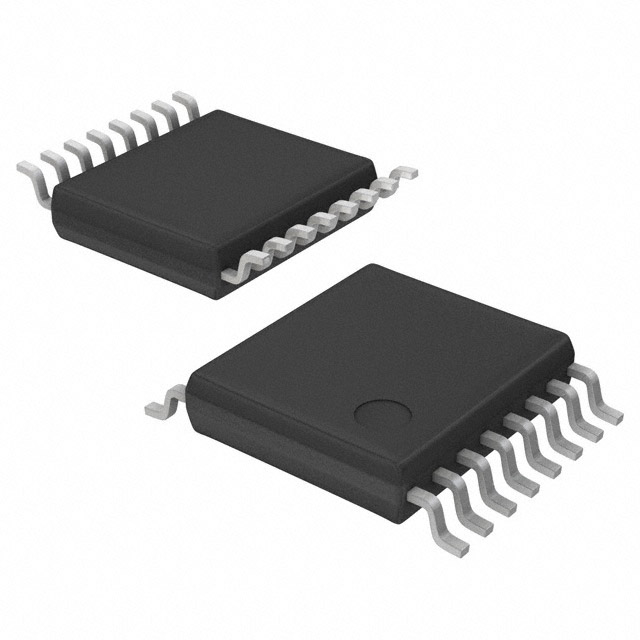

Buck Regulator Positive Output Step-Down DC-DC Controller IC 16-SSOP

Technical documentation and resources

No documents available
