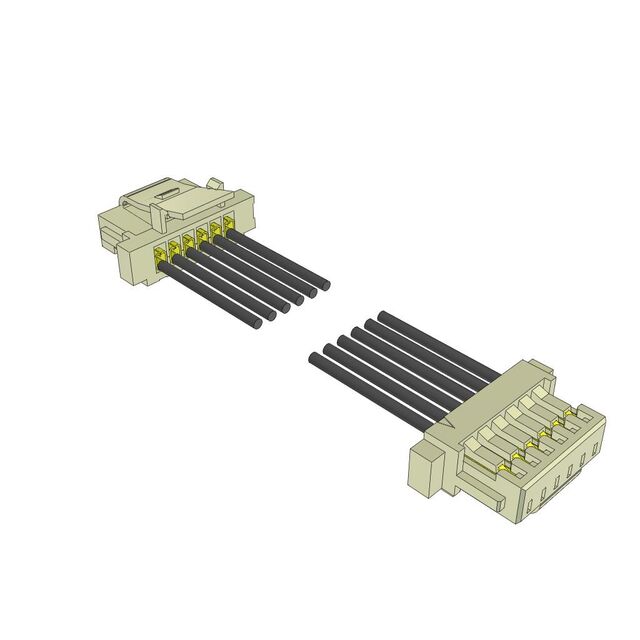

S1SS-06-28-GF-05.00-L1

Active

Samtec Inc.

RECTANGULAR CABLE ASSEMBLIES MICRO MATE SINGLE ROW DISCRETE WIRE CABLE ASSEMBLY, 1.00 MM PITCH

Search across all available documentation for this part.

Active

Samtec Inc.

RECTANGULAR CABLE ASSEMBLIES MICRO MATE SINGLE ROW DISCRETE WIRE CABLE ASSEMBLY, 1.00 MM PITCH

Technical Specifications

Parameters and characteristics for this part

Rectangular Cable Assemblies Micro Mate Single Row Discrete Wire Cable Assembly, 1.00 mm Pitch

Part	Number of Positions	Cable Termination	Number of Rows	Pitch - Connector	Pitch - Connector	Shielding	Connector Type	Features	Color	Contact Finish	Contact Finish Thickness	Contact Finish Thickness
Samtec Inc. S1SS-08-30C-GF-08.00-L	8	Crimp	1	0.039 "	1 mm	Unshielded	Socket to Individual Wire Leads	Latch Lock	Individual Multiple	Gold	3 Áin	0.076 Ám
Samtec Inc. S1SS-10-28-GF-03.00-L3	10	Crimp	1	0.039 "	1 mm	Unshielded	Socket to Socket	Latch Lock		Gold	3 Áin	0.076 Ám
Samtec Inc. S1SS-10-28-GF-32.00-S	10	Crimp	1	0.039 "	1 mm	Unshielded	Socket to Individual Wire Leads			Gold	3 Áin	0.076 Ám
Samtec Inc. S1SS-10-30C-GF-02.00-L3	10	Crimp	1	0.039 "	1 mm	Unshielded	Socket to Socket	Latch Lock	Individual Multiple	Gold	3 Áin	0.076 Ám
Samtec Inc. S1SS-10-28C-GF-24.00-S	10	Crimp	1	0.039 "	1 mm	Unshielded	Socket to Individual Wire Leads		Individual Multiple	Gold	3 Áin	0.076 Ám
Samtec Inc. S1SS-05-30-GF-01.80-D-NDS		Crimp	1	0.039 "	1 mm	Unshielded	Socket to Socket			Gold	3 Áin	0.076 Ám
Samtec Inc. S1SS-15-28-GF-12.00-D-NUS	15	Crimp	1	0.039 "	1 mm	Unshielded	Socket to Socket			Gold	3 Áin	0.076 Ám
Samtec Inc. S1SS-15-28C-GF-12.00-D-NUS	15	Crimp	1	0.039 "	1 mm	Unshielded	Socket to Socket		Individual Multiple	Gold	3 Áin	0.076 Ám
Samtec Inc. S1SS-20-30-GF-01.80-L3	20	Crimp	1	0.039 "	1 mm	Unshielded	Socket to Socket	Latch Lock		Gold	3 Áin	0.076 Ám
Samtec Inc. S1SS-06-28-GF-05.00-L1	6	Crimp	1	0.039 "	1 mm	Unshielded	Socket to Socket	Latch Lock		Gold	3 Áin	0.076 Ám

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rectangular Cable Assemblies Micro Mate Single Row Discrete Wire Cable Assembly, 1.00 mm Pitch
