CWN-501-60-0060

Active

CW Industries

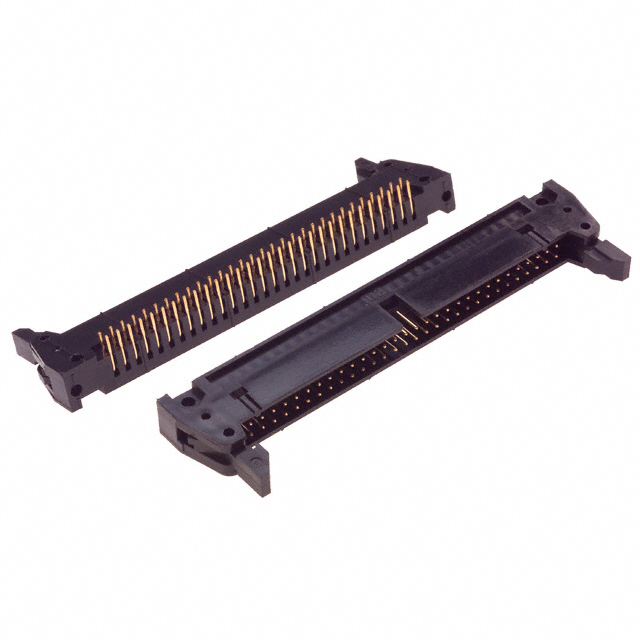

CONN HEADER R/A 60POS 2.54MM

Search across all available documentation for this part.

Active

CW Industries

CONN HEADER R/A 60POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	CWN-501-60-0060

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Nickel
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	1.27 µm
Contact Finish Thickness - Post	50 µin
Contact Length - Mating	6.1 mm
Contact Length - Mating [x]	0.24 in
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Latch Lock/Eject Hooks, Short
Features	Keying Slot
Insulation Color	Black
Insulation Height [custom]	0.35 in
Insulation Height [custom]	8.89 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	60
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Features	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Shrouding	Insulation Color	Insulation Height [custom]	Insulation Height [custom]	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Contact Type	Number of Rows	Termination	Mounting Type	Connector Type	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating [x]	Style	Fastening Type	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]
CW Industries CWN-501-60-0060	Keying Slot	All	-55 °C	125 °C	Circular	10 çin	0.25 çm	Phosphor Bronze	Shrouded - 4 Wall	Black	0.35 in	8.89 mm	Thermoplastic	1.27 µm	50 µin	Nickel	0.09 "	2.29 mm	Gold	0.1 in	2.54 mm	Male Pin	2	Solder	Through Hole Right Angle	Header	UL94 V-0	6.1 mm	0.24 in	Board to Cable/Wire	Latch Lock/Eject Hooks Short	60	2.54 mm	0.1 in
CW Industries CWN-501-10-0021	Keying Slot	All	-55 °C	125 °C	Circular	30 Áin	0.76 Ám	Phosphor Bronze	Shrouded - 4 Wall	Blue	0.35 in	8.89 mm	Thermoplastic	1.27 µm	50 µin	Nickel	0.09 "	2.29 mm	Gold	0.1 in	2.54 mm	Male Pin	2	Solder	Through Hole Right Angle	Header	UL94 V-0	6.1 mm	0.24 in	Board to Cable/Wire	Latch Lock/Eject Hooks Short	10	2.54 mm	0.1 in
