73412W 008100

Active

Belden Inc.

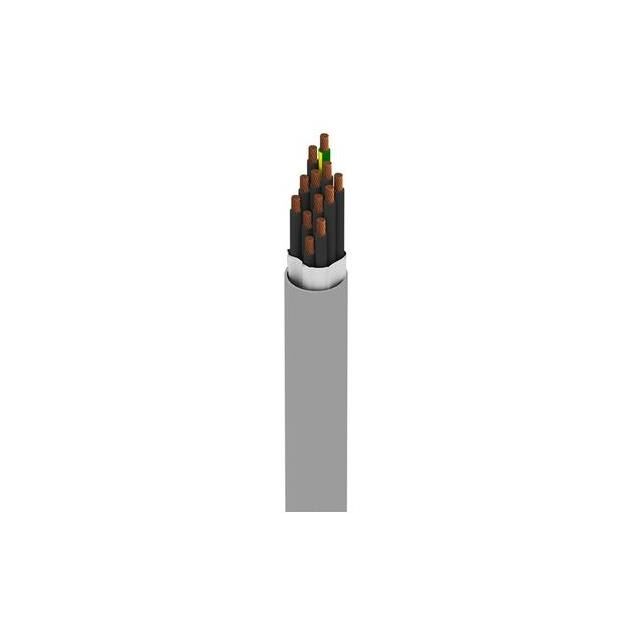

CABLE 12COND 14AWG GRAY

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 12COND 14AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	73412W 008100

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	41
Conductor Strand [custom]	30 AWG
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	16.94 mm
Jacket (Insulation) Diameter [diameter]	0.667 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.085 in
Jacket (Insulation) Thickness	2.159 mm
Jacket Color	Gray
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	12
Ratings	UL Style 2587
Voltage	600 V
Wire Gauge	13.5 AWG

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]	Wire Gauge	Conductor Material	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Features	Number of Conductors	Ratings	Jacket (Insulation) Material
Belden Inc. 73412W 008500	0.085 in	2.159 mm	600 V	Poly-Vinyl Chloride (PVC)	41	30 AWG	500 '	152.4 m	13.5 AWG	Copper Bare	Gray	16.94 mm	0.667 "	Multi-Conductor	Oil Resistant	12	UL Style 2587	Poly-Vinyl Chloride (PVC)
Belden Inc. 73412W 008100	0.085 in	2.159 mm	600 V	Poly-Vinyl Chloride (PVC)	41	30 AWG	100 ft	30.5 m	13.5 AWG	Copper Bare	Gray	16.94 mm	0.667 "	Multi-Conductor	Oil Resistant	12	UL Style 2587	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 8.05

General part information

12 Conductor Multi-Conductor Cable Gray 14 AWG 100.0' (30.5m)
