03K105-K00S3

Active

Rosenberger

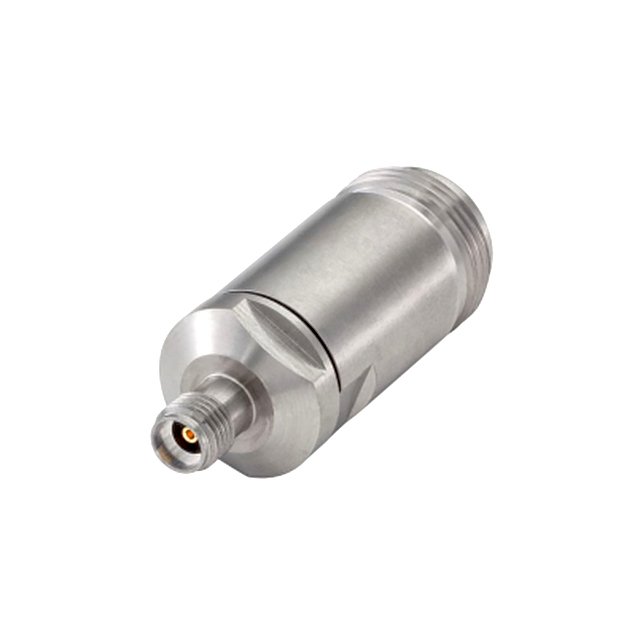

ADAPT3.50MM JACK - N JACK

Search across all available documentation for this part.

Active

Rosenberger

ADAPT3.50MM JACK - N JACK

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector 3.5mm Jack, Female Socket To N Jack, Female Socket 50 Ohms

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	03K105-K00S3	03K105 Series

Adapter Series	RPC-N, RPC-3.50	RPC-N, RPC-3.50
Adapter Type	Jack to Jack	Jack to Jack, Plug to Jack
Body Material	Stainless Steel	Stainless Steel
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Center Gender	Female to Female	Female to Female
Conversion Type	Between Series	Between Series
Convert From (Adapter End)	3.5mm Jack, Female Socket	3.5mm Jack, Female Socket
Convert To (Adapter End)	Female Socket, N Jack	Female Socket, N Jack, Male Pin, N Plug
Dielectric Material	Polyphenylene Ether (PPE)	Polyphenylene Ether (PPE)
Frequency - Max [Max]	18 GHz	18 GHz
Impedance	50 Ohms	50 Ohms
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Style	Straight	Straight

ADAPT3.50MM JACK - N JACK

Part	Impedance	Mating Cycles	Convert To (Adapter End)	Adapter Type	Operating Temperature [Max]	Operating Temperature [Min]	Adapter Series	Center Gender	Center Contact Plating	Center Contact Material	Frequency - Max [Max]	Mounting Type	Convert From (Adapter End)	Style	Dielectric Material	Body Material	Conversion Type
Rosenberger 03K105-K00S3	50 Ohms	500	Female Socket, N Jack	Jack to Jack	85 °C	-40 °C	RPC-3.50, RPC-N	Female to Female	Gold	Beryllium Copper	18 GHz	Free Hanging (In-Line)	3.5mm Jack, Female Socket	Straight	Polyphenylene Ether (PPE)	Stainless Steel	Between Series
Rosenberger 03K105-S00S3	50 Ohms	500	Male Pin, N Plug	Plug to Jack	85 °C	-40 °C	RPC-3.50, RPC-N		Gold	Beryllium Copper	18 GHz	Free Hanging (In-Line)	3.5mm Jack, Female Socket	Straight	Polyphenylene Ether (PPE)	Stainless Steel	Between Series
