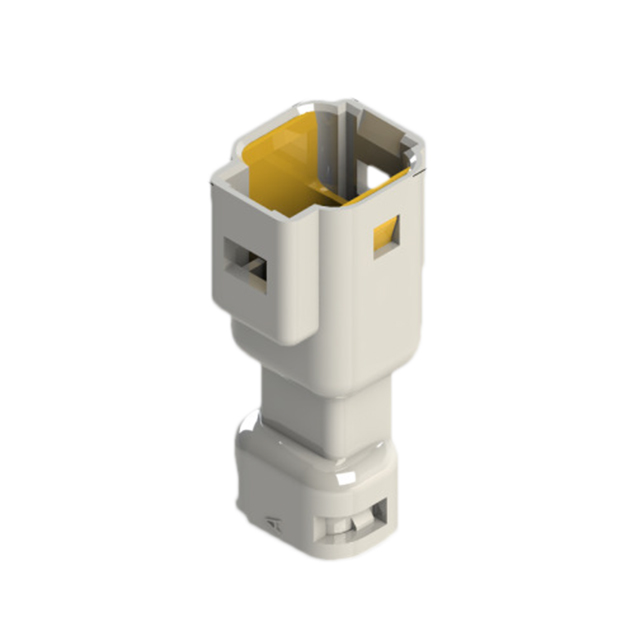

560-002-000-110

Active

EDAC Inc.

CONN PLUG HSG 2POS 2.50MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

560-002-000-110

Active

EDAC Inc.

CONN PLUG HSG 2POS 2.50MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	560-002-000-110

Color	White
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Waterproof
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.098 in
Pitch [x]	2.5 mm

560-002 Series

Part	Connector Type	Contact Termination	Pitch [x]	Pitch [x]	Number of Positions	Insulation Material	Note	Mounting Type	Color	Number of Rows	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Features	Termination	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Contact Material	Insulation Color	Number of Positions Loaded	Material Flammability Rating	Shrouding	Voltage Rating	Contact Finish - Post	Contact Shape	Applications	Ingress Protection	Style	Current Rating (Amps)	Length [x]	Length [x]	Cable Termination
EDAC Inc. 560-002-000-111	Plug	Crimp	0.098 in	2.5 mm	2	Polybutylene Terephthalate (PBT)	Contacts Not Included	Free Hanging (In-Line)	White	1	Male Pin	-40 °C	105 ░C	Latch Holder	Waterproof
EDAC Inc. 560-002-000-410	Receptacle	Crimp	0.098 in	2.5 mm	2	Polybutylene Terephthalate (PBT)	Contacts Not Included	Free Hanging (In-Line)	Blue	1	Female Socket	-40 °C	105 ░C	Latch Lock	Waterproof
EDAC Inc. 560-002-000-411	Receptacle	Crimp	0.098 in	2.5 mm	2	Polybutylene Terephthalate (PBT)	Contacts Not Included	Free Hanging (In-Line)	Blue	1	Female Socket	-40 °C	105 ░C	Latch Lock	Waterproof
EDAC Inc. 560-002-000-110	Plug	Crimp	0.098 in	2.5 mm	2	Polybutylene Terephthalate (PBT)	Contacts Not Included	Free Hanging (In-Line)	White	1	Male Pin	-40 °C	105 ░C	Latch Holder	Waterproof
EDAC Inc. 560-002-420-101	Header				2	Polybutylene Terephthalate (PBT)		Through Hole		1	Male Pin	-40 °C	105 ░C	Latch Holder		Solder	2.5 mm	0.098 in	0.61 in	15.49 mm	Brass	White	All	UL94 V-0	Shrouded - 4 Wall	250 VDC	Tin	Circular	Automotive General Purpose	IP67	Board to Cable/Wire	3 A
EDAC Inc. 560-002-745-420	Socket to Cable				2				Blue Individual White	1					Latch Lock																		1.64 ft	500 mm	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.78
		10	$ 1.36
		25	$ 1.22
		50	$ 1.13
		100	$ 1.05
		250	$ 0.95
		500	$ 0.88
		1000	$ 0.82
		2500	$ 0.75

Description

General part information

560-002 Series

2 Rectangular Connectors - Housings Plug White 0.098" (2.50mm)
