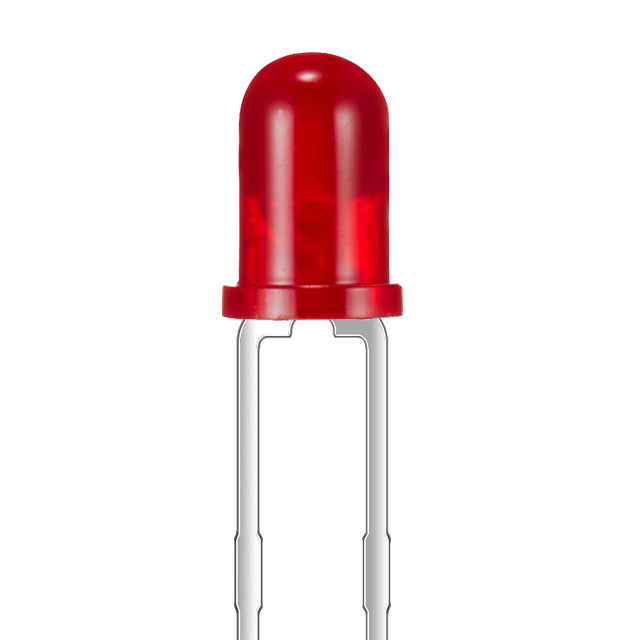

XLMDK01D
ActiveSunLED
LED RED DIFFUSED 10MM T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XLMDK01D
ActiveSunLED
LED RED DIFFUSED 10MM T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XLMDK01D |
|---|---|
| Color | Red |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 14.75 mm |
| Lens Color | Red |
| Lens Size [diameter] | 10 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 895 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension [diameter] | 10 mm |
| Supplier Device Package | 10 mm |
| Viewing Angle | 30 ° |
| Voltage - Forward (Vf) (Typ) | 1.95 V |
| Wavelength - Dominant | 630 nm |
| Wavelength - Peak | 650 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.64 | |
| 10 | $ 0.39 | |||
| 200 | $ 0.23 | |||
| 1000 | $ 0.18 | |||
| 5000 | $ 0.15 | |||
| 10000 | $ 0.14 | |||
Description
General part information
XLMDK01 Series
Red 630nm LED Indication - Discrete 1.95V Radial
