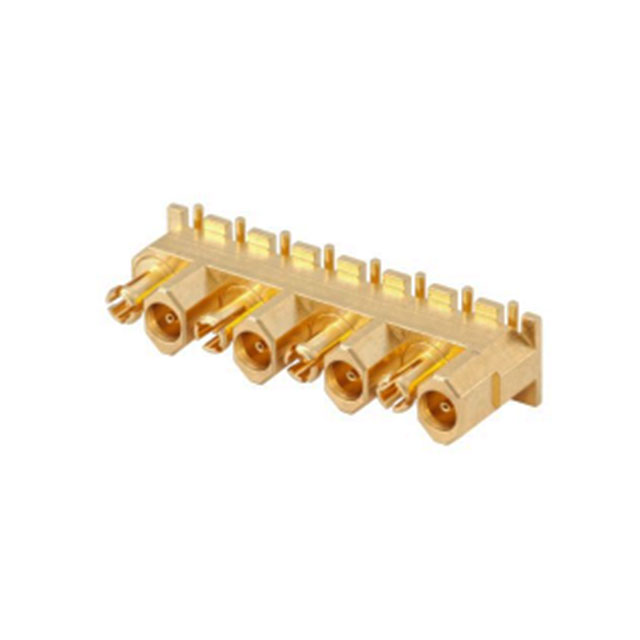

Specification	23C21D-40ML5

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Plug Count	4
Connector Style	Miniature Coaxial
Connector Type	Plug, Male Pin, Jack, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max	20 Gbps
Housing Color	Gold
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Type	Through Hole, Right Angle, Surface Mount
Number of Ports	8
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Shield Termination	Solder
Voltage Rating	500 V

23C21D Series

Part	Center Contact Plating	Body Finish	Dielectric Material	Voltage Rating	Operating Temperature (Max)	Operating Temperature (Min)	Mating Cycles	Body Material	Connector Type	Connector Plug Count	Impedance	Housing Color	Fastening Type	Connector Style	Mounting Type	Number of Ports	Contact Termination	Frequency - Max	Center Contact Material	Shield Termination
Rosenberger 23C21D-40ML5	Gold	Gold	Polytetrafluoroethylene (PTFE)	500 V	125 °C	-40 °C	500 cycles	Brass	Jack Female Socket Plug Male Pin	4	50 Ohm	Gold	Snap-On	Miniature Coaxial	Right Angle Surface Mount Through Hole	8	Solder	20 Gbps	Beryllium Copper	Solder
