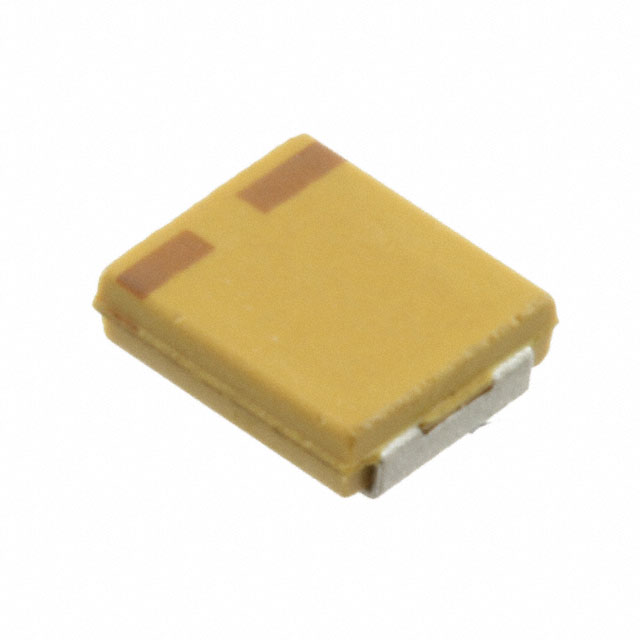

T490B227M006ATE300

Active

KEMET

CAP, 220ΜF, 6.3V, 20% ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

KEMET

CAP, 220ΜF, 6.3V, 20% ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	T490B227M006ATE300

Capacitance	220 µF
ESR (Equivalent Series Resistance)	300 mOhm
Features	General Purpose
Height - Seated (Max) [Max] [z]	2.1 mm
Height - Seated (Max) [Max] [z]	0.083 "
Lifetime @ Temp.	1000 Hrs
Manufacturer Size Code	B
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	1411
Package / Case	3528 Metric
Size / Dimension [x]	0.138 "
Size / Dimension [x]	3.5 mm
Size / Dimension [y]	0.11 in
Size / Dimension [y]	2.8 mm
Tolerance	20 %
Type	Molded
Voltage - Rated	6 VDC

Part	Tolerance	Manufacturer Size Code	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Lifetime @ Temp.	Package / Case	Package / Case	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Features	ESR (Equivalent Series Resistance)
KEMET T490B227M006ATE500	20 %	B	-55 °C	125 °C	6 VDC	1000 Hrs	1411	3528 Metric	220 µF	2.1 mm	0.083 "	Molded	0.11 in	2.8 mm	0.138 "	3.5 mm	Surface Mount	General Purpose
KEMET T490B227M006ATE300	20 %	B	-55 °C	125 °C	6 VDC	1000 Hrs	1411	3528 Metric	220 µF	2.1 mm	0.083 "	Molded	0.11 in	2.8 mm	0.138 "	3.5 mm	Surface Mount	General Purpose	300 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

220 µF Molded Tantalum Capacitors 6 V 1411 (3528 Metric) 300mOhm @ 100kHz
