010440WF075

Active

Essentra Components

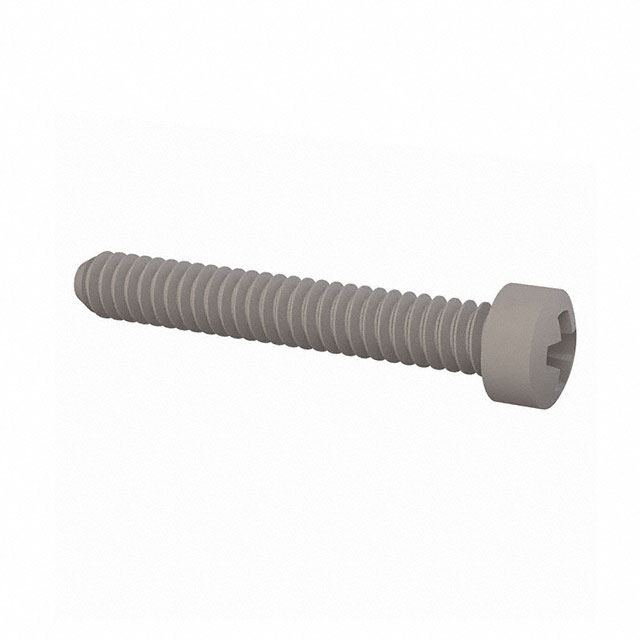

FILLISTER PHILLIPS SCREW 4-40 TH

Search across all available documentation for this part.

Active

Essentra Components

FILLISTER PHILLIPS SCREW 4-40 TH

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

#4-40 Pan Head Machine Screw Phillips Drive Nylon

Technical documentation and resources

Parameters and characteristics commom to parts in this series

FILLISTER PHILLIPS SCREW 4-40 TH

Part	Thread Size	Length - Overall [x]	Length - Overall [x]	Drive Type	Material	Type	Screw Head Type	Length - Below Head	Length - Below Head	Length - Below Head	Length - Below Head	Length - Below Head [x]	Length - Below Head [x]	Head Diameter [diameter]	Head Diameter [diameter]	Head Height	Head Height
Essentra Components 010440WF050	#4-40	17.65 mm	0.695 "	Phillips	Nylon	Machine Screw	Pan Head	12.7 mm	1/2	0.5 in
Essentra Components 010440WF162	#4-40	46.23 mm	1.82 in	Phillips	Nylon	Machine Screw	Pan Head
Essentra Components 010440WF087	#4-40	27.18 mm	1.07 in	Phillips	Nylon	Machine Screw	Pan Head	0.875 in			22.23 mm	0.875 in
Essentra Components 010440WF018	#4-40			Phillips	Nylon	Machine Screw	Pan Head
Essentra Components 010440WF112	#4-40	33.53 mm	1.32 in	Phillips	Nylon	Machine Screw	Pan Head					1.125 in	28.58 mm	4.43 mm	0.174 in	0.195 in	4.95 mm
Essentra Components 010440WF009	#4-40			Phillips	Nylon	Machine Screw	Pan Head							4.43 mm	0.174 in	0.195 in	4.95 mm
Essentra Components 010440WF037	#4-40	14.48 mm	0.57 in	Phillips	Nylon	Machine Screw	Pan Head	0.375 "		0.375 "	9.53 mm
Essentra Components 010440WF068	#4-40			Phillips	Nylon	Machine Screw	Pan Head	17.46 mm				0.688 "		4.43 mm	0.174 in	0.195 in	4.95 mm
Essentra Components 010440WF062	#4-40	20.83 mm	0.82 in	Phillips	Nylon	Machine Screw	Pan Head	15.88 mm		0.625 in	0.625 in
Essentra Components 010440WF118	#4-40			Phillips	Nylon	Machine Screw	Pan Head					1.188 in	30.16 mm	4.43 mm	0.174 in	0.195 in	4.95 mm
