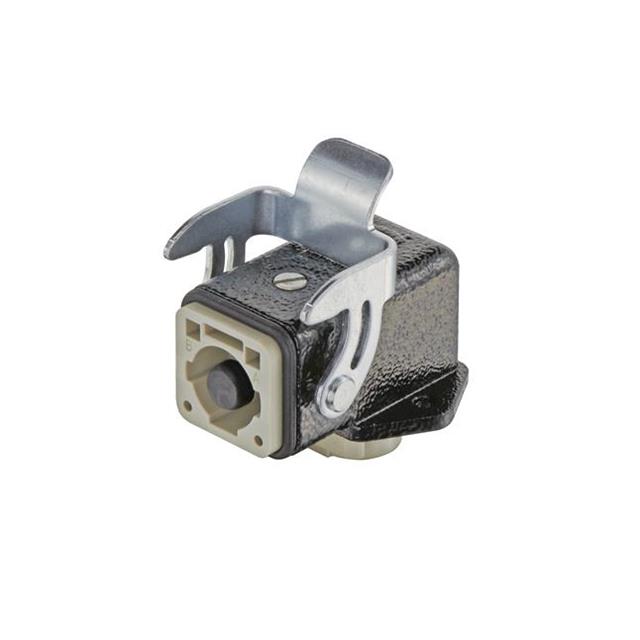

HEAVY DUTY CONN, PLUG, 1POS, PANEL
Search across all available documentation for this part.
HEAVY DUTY CONN, PLUG, 1POS, PANEL
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
General part information
1 Panel Connector Assembly Side Entry Screw
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 09120012661 | 09120012 Series |
|---|---|---|
| Color | - | Gray |
| Connector Type | - | Insert with USB, Insert with Firewire |
| Contact Finish | - | Silver |
| Contact Material | - | Copper Alloy |
| Contents | Panel Connector Assembly | Panel Connector Assembly |
| Current Rating (Amps) | - | 100 A |
| Gender | - | Female, Male |
| Housing Material | - | Polyamide (PA), Polycarbonate (PC), Nylon |
| Material Flammability Rating | - | UL94 V-0 |
| Number of Positions | 1 | 1 - 6 |
| Operating Temperature | - | 85 - 125 °C |
| Operating Temperature | - | -40 °C |
| Size | 3 A | 3 A |
| Style | Side Entry | Side Entry |
| Termination Style | Screw | Screw, Crimp |
| Voltage Rating | - | 50 - 400 V |
HEAVY DUTY INSERT, RCPT, 1POS, 6-4AWG
| Part | Color | Number of Positions | Contact Finish | Material Flammability Rating | Termination Style | Voltage Rating | Contact Material | Size | Current Rating (Amps) | Housing Material | Gender | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Style | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HARTING 09120012751 | Gray | 1 | Silver | UL94 V-0 | Screw | 400 V | Copper Alloy | 3 A | 100 A | Nylon, Polyamide (PA), Polycarbonate (PC) | Female | 125 °C | -40 °C | |||
HARTING 09120012794 | 4 | UL94 V-0 | Crimp | 50 V | 3 A | Polycarbonate (PC) | Male | 85 °C | -40 °C | Insert with USB | ||||||
HARTING 09120012661 | 1 | Screw | 3 A | Side Entry | Panel Connector Assembly | |||||||||||
HARTING 09120012774 | 6 | UL94 V-0 | Crimp | 50 V | 3 A | Polycarbonate (PC) | Male | 85 °C | -40 °C | Insert with Firewire | ||||||
HARTING 09120012651 | Gray | 1 | Silver | UL94 V-0 | Screw | 400 V | Copper Alloy | 3 A | 100 A | Nylon, Polyamide (PA), Polycarbonate (PC) | Male | 125 °C | -40 °C |
