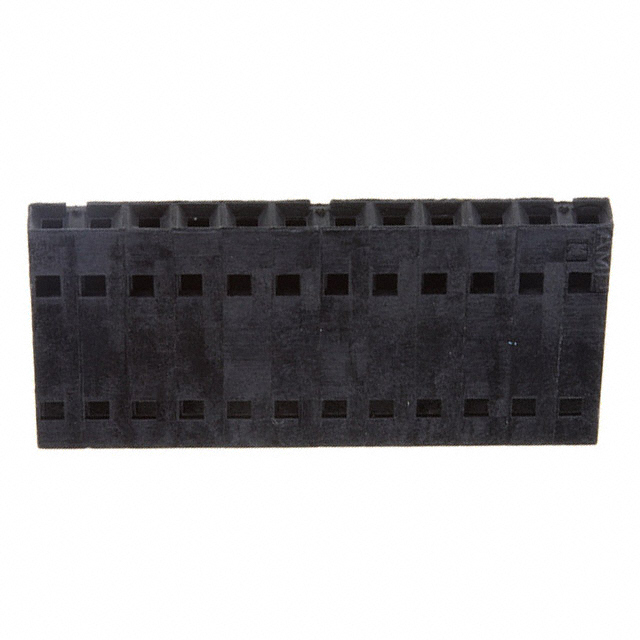

1-103688-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 12POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-103688-1 | 103688 Series |
|---|---|---|
| Color | Black | Black |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Insulation Material | Thermoplastic | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 12 | 4 - 24 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 500 | $ 1.54 | |
103688 Series
CONN RCPT HSG 13POS 2.54MM
| Part | Contact Termination | Note | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Connector Type | Contact Type | Color | Pitch [x] | Pitch [x] | Mounting Type | Insulation Material | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-103688-2 | Crimp | Contacts Not Included | -65 ░C | 105 ░C | 1 | Receptacle | Female Socket | Black | 2.54 mm | 0.1 in | Free Hanging (In-Line) | Thermoplastic | 13 |
TE Connectivity AMP Connectors 103688-5 | Crimp | Contacts Not Included | -65 ░C | 105 ░C | 1 | Receptacle | Female Socket | Black | 2.54 mm | 0.1 in | Free Hanging (In-Line) | Thermoplastic | 6 |
TE Connectivity AMP Connectors 2-103688-3 | Crimp | Contacts Not Included | -65 ░C | 105 ░C | 1 | Receptacle | Female Socket | Black | 2.54 mm | 0.1 in | Free Hanging (In-Line) | 24 | |
TE Connectivity AMP Connectors 2-103688-2 | Crimp | Contacts Not Included | -65 ░C | 105 ░C | 1 | Receptacle | Female Socket | Black | 2.54 mm | 0.1 in | Free Hanging (In-Line) | 23 | |
TE Connectivity AMP Connectors 1-103688-4 | Crimp | Contacts Not Included | -65 ░C | 105 ░C | 1 | Receptacle | Female Socket | Black | 2.54 mm | 0.1 in | Free Hanging (In-Line) | Thermoplastic | 15 |
TE Connectivity AMP Connectors 1-103688-7 | Crimp | Contacts Not Included | -65 ░C | 105 ░C | 1 | Receptacle | Female Socket | Black | 2.54 mm | 0.1 in | Free Hanging (In-Line) | Thermoplastic | 18 |
TE Connectivity AMP Connectors 103688-4 | Crimp | Contacts Not Included | -65 ░C | 105 ░C | 1 | Receptacle | Female Socket | Black | 2.54 mm | 0.1 in | Free Hanging (In-Line) | Thermoplastic | |
TE Connectivity AMP Connectors 2-103688-4 | Crimp | Contacts Not Included | -65 ░C | 105 ░C | 1 | Receptacle | Female Socket | Black | 2.54 mm | 0.1 in | Free Hanging (In-Line) | ||
TE Connectivity AMP Connectors 103688-9 | Crimp | Contacts Not Included | -65 ░C | 105 ░C | 1 | Receptacle | Female Socket | Black | 2.54 mm | 0.1 in | Free Hanging (In-Line) | Thermoplastic | 10 |
TE Connectivity AMP Connectors 1-103688-1 | Crimp | Contacts Not Included | -65 ░C | 105 ░C | 1 | Receptacle | Female Socket | Black | 2.54 mm | 0.1 in | Free Hanging (In-Line) | Thermoplastic | 12 |
TE Connectivity AMP Connectors 103688-3 | Crimp | Contacts Not Included | 1 | Receptacle | Female Socket | Black | 2.54 mm | 0.1 in | Free Hanging (In-Line) | 4 | |||
TE Connectivity AMP Connectors 2-103688-0 | Crimp | Contacts Not Included | -65 ░C | 105 ░C | 1 | Receptacle | Female Socket | Black | 2.54 mm | 0.1 in | Free Hanging (In-Line) | 21 | |
TE Connectivity AMP Connectors 103688-2 | Crimp | Contacts Not Included | -65 ░C | 105 ░C | 1 | Receptacle | Female Socket | Black | 2.54 mm | 0.1 in | Free Hanging (In-Line) | Thermoplastic |
Description
General part information
103688 Series
12 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
