ZFA FA200 BK OG 4U EE

Active

LITTELFUSE

SWITCH PUSH 4PDT 0.5A 125V

Search across all available documentation for this part.

Active

LITTELFUSE

SWITCH PUSH 4PDT 0.5A 125V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

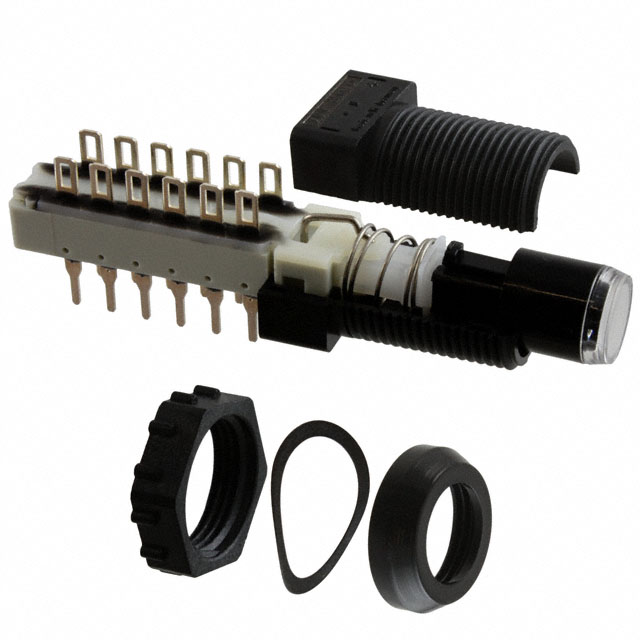

Pushbutton Switch 4PDT Standard Panel Mount, Right Angle, Rear

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	ZFA FA200 BK OG 4U EE	ZFA Series

	-	-
Actuator Marking	No Marking	No Marking
Actuator Type	Round, Button	Round, Button
Circuit	4PDT	DPDT, 4PDT
Color - Actuator/Cap	Orange	Orange, Green
Current Rating (Amps)	500 mA	500 mA
Electrical Life	100000 Cycles	100000 Cycles
Mechanical Life	100000 Cycles	100000 Cycles
Mounting Type	Panel Mount, Right Angle, Rear	Panel Mount, Right Angle, Rear
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Panel Cutout Dimensions [diameter]	14 mm	14 mm
Switch Function	On-On	On-On
Termination Style	PC Pin, Solder Lug	PC Pin, Solder Lug
Type	Standard	Standard
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	30 V	30 V

SWITCH PUSH DPDT 0.5A 125V

Part	Panel Cutout Dimensions [diameter]	Actuator Marking	Current Rating (Amps)	Circuit	Voltage Rating - AC	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Termination Style	Switch Function	Type	Mechanical Life	Electrical Life	Actuator Type	Color - Actuator/Cap
LITTELFUSE ZFA FA200 BK OG 2U EE	14 mm	No Marking	500 mA	DPDT	125 V	Panel Mount, Rear, Right Angle	-40 °C	70 °C	30 V	PC Pin, Solder Lug	On-On	Standard	100000 Cycles	100000 Cycles	Button, Round	Orange
LITTELFUSE ZFAFA200BKGN2UEE	14 mm	No Marking	500 mA	DPDT	125 V	Panel Mount, Rear, Right Angle	-40 °C	70 °C	30 V	PC Pin, Solder Lug	On-On	Standard	100000 Cycles	100000 Cycles	Button, Round	Green
LITTELFUSE ZFAFA200GYGN2UEE
LITTELFUSE ZFA FA200 BK GN 4U EE	14 mm	No Marking	500 mA	4PDT	125 V	Panel Mount, Rear, Right Angle	-40 °C	70 °C	30 V	PC Pin, Solder Lug	On-On	Standard	100000 Cycles	100000 Cycles	Button, Round	Green
LITTELFUSE ZFA FA200 BK OG 4U EE	14 mm	No Marking	500 mA	4PDT	125 V	Panel Mount, Rear, Right Angle	-40 °C	70 °C	30 V	PC Pin, Solder Lug	On-On	Standard	100000 Cycles	100000 Cycles	Button, Round	Orange
