CT2228-2

Active

Cal Test Electronics

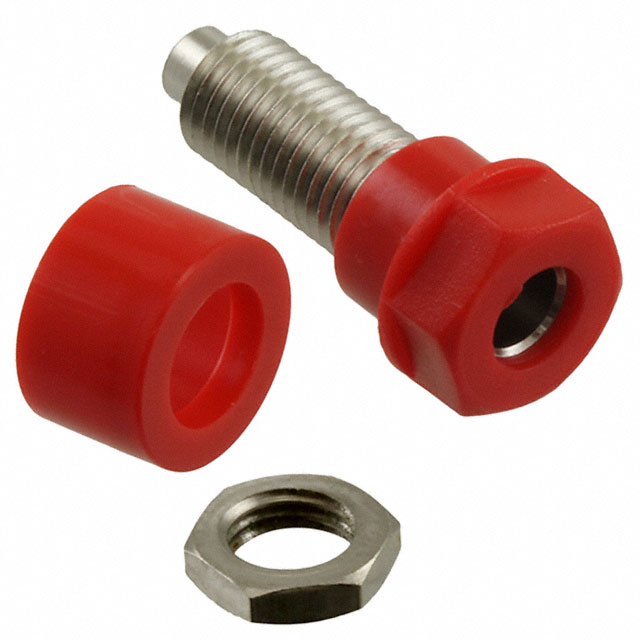

CONN BANANA JACK SOLDER RED

Search across all available documentation for this part.

Active

Cal Test Electronics

CONN BANANA JACK SOLDER RED

Technical Specifications

Parameters and characteristics commom to parts in this series

BANANA TEST CONNECTOR, JACK, PANEL MOUNT, 36 A, 1.2 KV, NICKEL PLATED CONTACTS, YELLOW

Part	Gender	Contact Finish	Contact Material	Termination	Plug/Mating Plug Diameter	Operating Temperature [Min]	Operating Temperature [Max]	Color	Body Material	Type	Insulation
Cal Test Electronics CT2228-4	Female	Nickel	Brass	Solder	Standard Banana	-20 C	80 C	Yellow	Nylon, Polyamide (PA)	Banana Jack	Mating End Insulated
Cal Test Electronics CT2228-5	Female	Nickel	Brass	Solder	Standard Banana	-20 C	80 C	Green	Nylon, Polyamide (PA)	Banana Jack	Mating End Insulated
Cal Test Electronics CT2228-6	Female	Nickel	Brass	Solder	Standard Banana	-20 C	80 C	Blue	Nylon, Polyamide (PA)	Banana Jack	Mating End Insulated
Cal Test Electronics CT2228-2	Female	Nickel	Brass	Solder	Standard Banana	-20 C	80 C	Red	Nylon, Polyamide (PA)	Banana Jack	Mating End Insulated
Cal Test Electronics CT2228-9	Female	Nickel	Brass	Solder	Standard Banana	-20 C	80 C	White	Nylon, Polyamide (PA)	Banana Jack	Mating End Insulated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.95

General part information

Banana Jack Connector Standard Banana Solder Red
