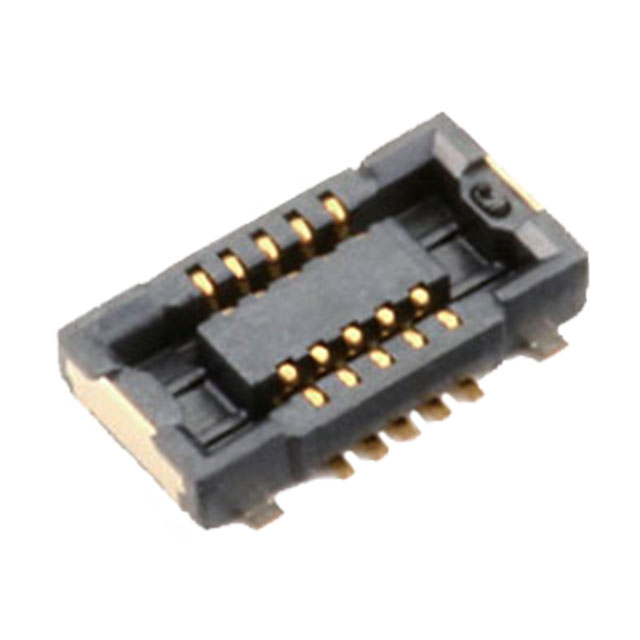

AXF5A1012A

Active

Panasonic Electric Works

CONN SOCKET 10POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN SOCKET 10POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXF5A1012A

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.03 in
Height Above Board [z]	0.75 mm
Mated Stacking Heights	0.8 mm
Mounting Type	Surface Mount
Number of Positions	10
Number of Rows	2
Pitch [x]	0.35 mm
Pitch [x]	0.014 in

Part	Mounting Type	Mated Stacking Heights	Number of Positions	Contact Finish	Number of Rows	Connector Type	Pitch [x]	Pitch [x]	Features	Height Above Board [z]	Height Above Board [z]
Panasonic Electric Works AXF5A1012A	Surface Mount	0.8 mm	10	Gold	2	Socket Center Strip Contacts	0.35 mm	0.014 in	Solder Retention	0.03 in	0.75 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Connector Socket, Center Strip Contacts Surface Mount Gold

Technical documentation and resources

No documents available
