AD-05PMMP-QC8001
ActiveAmphenol LTW

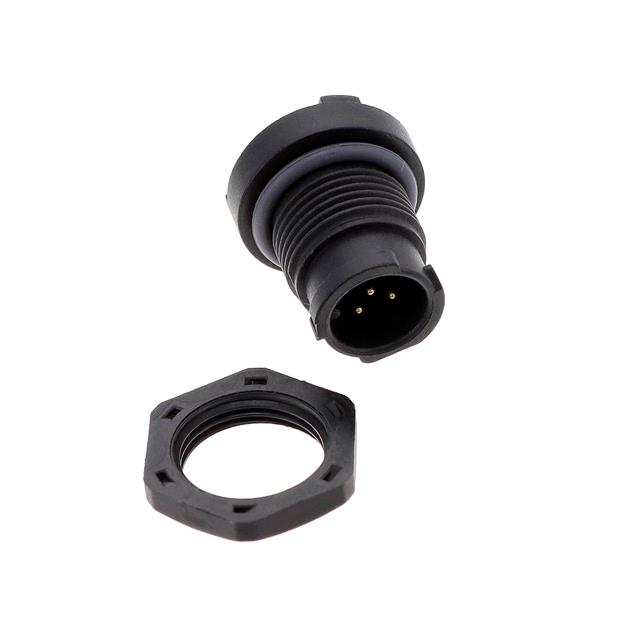

CIRCULAR CONNECTOR, X-LOK A SIZE SERIES, PANEL MOUNT PLUG, 5 CONTACTS, PCB PIN, PUSH LOCK
Deep-Dive with AI
Search across all available documentation for this part.
AD-05PMMP-QC8001
ActiveAmphenol LTW
CIRCULAR CONNECTOR, X-LOK A SIZE SERIES, PANEL MOUNT PLUG, 5 CONTACTS, PCB PIN, PUSH LOCK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AD-05PMMP-QC8001 |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 5 A |
| Fastening Type | Push-Pull |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 5 |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Size - Insert | A |
| Shielding | Unshielded |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
AD-05PMMP Series
5 (Data) Position Circular Connector Receptacle, Male Pins Solder
