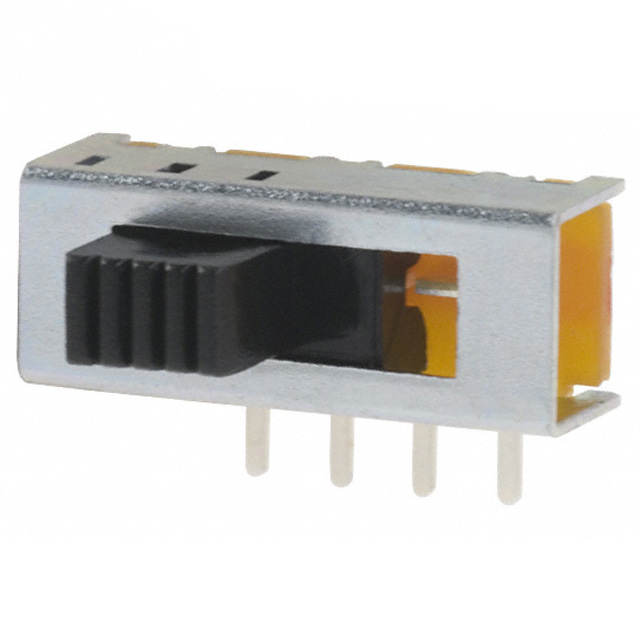

STS131RA

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH SLIDE SP3T 300MA 125V

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH SLIDE SP3T 300MA 125V

Technical Specifications

Parameters and characteristics for this part

Specification	STS131RA

Actuator Length [x]	4 mm
Actuator Material	Polyoxymethylene (Acetal) (POM)
Actuator Type	Standard
Circuit	SP3T
Contact Finish	Silver
Contact Material	Copper Alloy
Contact Timing	Shorting
Current Rating (Amps)	300 mA
Features	Epoxy Sealed Terminals
Mechanical Life	10000 Steps
Mounting Type	Through Hole, Right Angle
Operating Force	0.25 kgf
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Switch Function	On-On-On
Switch Travel	2.5 mm
Termination Style	PC Pin
Voltage Rating - AC	125 V

Part	Voltage Rating - AC	Actuator Material	Operating Temperature [Min]	Operating Temperature [Max]	Mechanical Life	Actuator Length [x]	Termination Style	Contact Material	Current Rating (Amps)	Operating Force	Switch Travel	Switch Function	Actuator Type	Mounting Type	Contact Timing	Contact Finish	Circuit	Features
TE Connectivity Raychem Cable Protection STS121PC	125 V	Polyoxymethylene (Acetal) (POM)	-10 °C	60 °C	10000 Steps	4 mm	PC Pin	Copper Alloy	300 mA	0.25 kgf	2.5 mm	On-On	Standard	Through Hole	Shorting	Silver	SPDT	Epoxy Sealed Terminals
TE Connectivity Raychem Cable Protection STS1400PC	125 V	Polyoxymethylene (Acetal) (POM)	-10 °C	60 °C	10000 Steps	4 mm	PC Pin	Copper Alloy	300 mA	0.25 kgf	2.5 mm	On-On-On-On	Standard	Through Hole	Shorting	Silver		Epoxy Sealed Terminals
TE Connectivity Raychem Cable Protection STS131RA	125 V	Polyoxymethylene (Acetal) (POM)	-10 °C	60 °C	10000 Steps	4 mm	PC Pin	Copper Alloy	300 mA	0.25 kgf	2.5 mm	On-On-On	Standard	Through Hole Right Angle	Shorting	Silver	SP3T	Epoxy Sealed Terminals
TE Connectivity Raychem Cable Protection STS121RA	125 V	Polyoxymethylene (Acetal) (POM)	-10 °C	60 °C	10000 Steps	4 mm	PC Pin	Copper Alloy	300 mA	0.25 kgf	2.5 mm	On-On	Standard	Through Hole Right Angle	Shorting	Silver	SPDT	Epoxy Sealed Terminals
TE Connectivity Raychem Cable Protection STS1300PC	125 V	Polyoxymethylene (Acetal) (POM)	-10 °C	60 °C	10000 Steps	4 mm	PC Pin	Copper Alloy	300 mA	0.25 kgf	2.5 mm	On-On-On	Standard	Through Hole	Shorting	Silver	SP3T	Epoxy Sealed Terminals

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Slide Switch SP3T Through Hole, Right Angle
