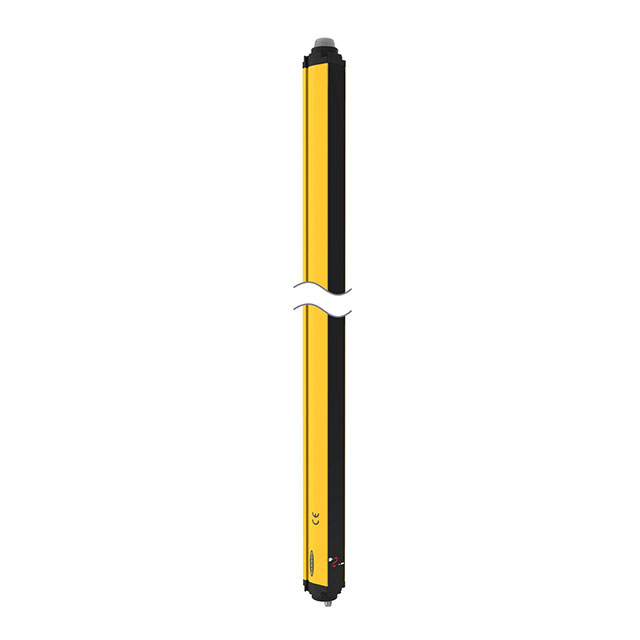

SGSSA4-400Q8

Active

BANNER ENGINEERING

SGS SAFETY GRID SYSTEM, ACTIVE TRANCEIVER

Search across all available documentation for this part.

Active

BANNER ENGINEERING

SGS SAFETY GRID SYSTEM, ACTIVE TRANCEIVER

Technical Specifications

Parameters and characteristics for this part

Specification	SGSSA4-400Q8

Beam Pitch	400 mm
Ingress Protection	IP65 - Dust Tight, Water Resistant
Number of Beams [custom]	4
Operating Range [Max]	8 m
Operating Range [Min]	0.5 m
Protective Height	1200 mm
Voltage - Supply	24 VDC

Part	Protective Height	Operating Range [Max]	Operating Range [Min]	Voltage - Supply	Number of Beams [custom]	Ingress Protection	Beam Pitch
BANNER ENGINEERING SGSSA4-400Q8	1200 mm	8 m	0.5 m	24 VDC	4	IP65 - Dust Tight Water Resistant	400 mm
BANNER ENGINEERING SGSSA4-300Q8	900 mm	6.5 m	0.5 m	24 VDC	4	IP65 - Dust Tight Water Resistant	300 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1182.01
Newark	Each	1	$ 1203.00

General part information

Light Curtain

Technical documentation and resources

No documents available
