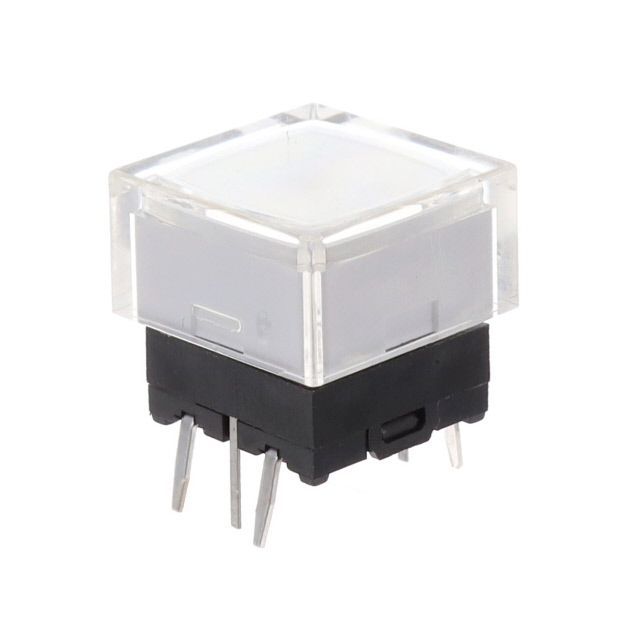

JB15LPF-JJ

Active

NKK Switches

ILLUMINATED LOW PROFILE PROCESS SEALED TACTILE

Deep-Dive with AI

Search across all available documentation for this part.

JB15LPF-JJ

Active

NKK Switches

ILLUMINATED LOW PROFILE PROCESS SEALED TACTILE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JB15LPF-JJ

Actuator Height off PCB, Vertical [z]	11.2 mm
Actuator Material	Polyacetal
Actuator Orientation	Top Actuated
Actuator Type	Square Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC
Features	Process Sealed
Illumination	Illuminated
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	2.1 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	5000000 Cycles
Mounting Type	Through Hole
Operating Force	176 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Outline [x]	10 mm
Outline [y]	10 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	PC Pin

JB15LPF Series

Part	Circuit	Termination Style	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating @ Voltage	Switch Function	Actuator Material	Features	Actuator Type	Ingress Protection	Switch Travel	Mechanical Life	Actuator Height off PCB, Vertical [z]	Illumination	Operating Force	Outline [y]	Outline [x]	Illumination Type, Color	Actuator Orientation	Illumination Voltage (Nominal)
NKK Switches JB15LPF-BH	SPST-NO	PC Pin	Through Hole	70 °C	-25 °C	0.05 A 24 VDC	Off-Mom	Polyacetal	Process Sealed	Square Button	IP67 - Dust Tight Waterproof	0.25 mm	5000000 Cycles	11.2 mm	Illuminated	176 gf	10 mm	10 mm	Green LED	Top Actuated	2.1 VDC
NKK Switches JB15LPF-F	SPST-NO	PC Pin	Through Hole	70 °C	-25 °C	0.05 A 24 VDC	Off-Mom	Polyacetal	Process Sealed	Square Button	IP67 - Dust Tight Waterproof	0.25 mm	5000000 Cycles	11.2 mm	Illuminated	176 gf	10 mm	10 mm	Green LED	Top Actuated	2.1 VDC
NKK Switches JB15LPF-JB	SPST-NO	PC Pin	Through Hole	70 °C	-25 °C	0.05 A 24 VDC	Off-Mom	Polyacetal	Process Sealed	Square Button	IP67 - Dust Tight Waterproof	0.25 mm	5000000 Cycles	11.2 mm	Illuminated	176 gf	10 mm	10 mm	Green LED	Top Actuated	2.1 VDC
NKK Switches JB15LPF-JJ	SPST-NO	PC Pin	Through Hole	70 °C	-25 °C	0.05 A 24 VDC	Off-Mom	Polyacetal	Process Sealed	Square Button	IP67 - Dust Tight Waterproof	0.25 mm	5000000 Cycles	11.2 mm	Illuminated	176 gf	10 mm	10 mm	Green LED	Top Actuated	2.1 VDC
NKK Switches JB15LPF-JF	SPST-NO	PC Pin	Through Hole	70 °C	-25 °C	0.05 A 24 VDC	Off-Mom	Polyacetal	Process Sealed	Square Button	IP67 - Dust Tight Waterproof	0.25 mm	5000000 Cycles	11.2 mm	Illuminated	176 gf	10 mm	10 mm	Green LED	Top Actuated	2.1 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 6.69
		10	$ 5.83
		25	$ 5.52
		100	$ 5.06
		250	$ 4.78
		500	$ 4.58
		1000	$ 4.38
Newark	Each	1	$ 9.37
		10	$ 9.00
		25	$ 8.72
		50	$ 8.07
		100	$ 7.36
		250	$ 6.46
		500	$ 5.78
		1000	$ 5.44

Description

General part information

JB15LPF Series

Tactile Switch SPST-NO Top Actuated Through Hole

Documents

Technical documentation and resources

No documents available
