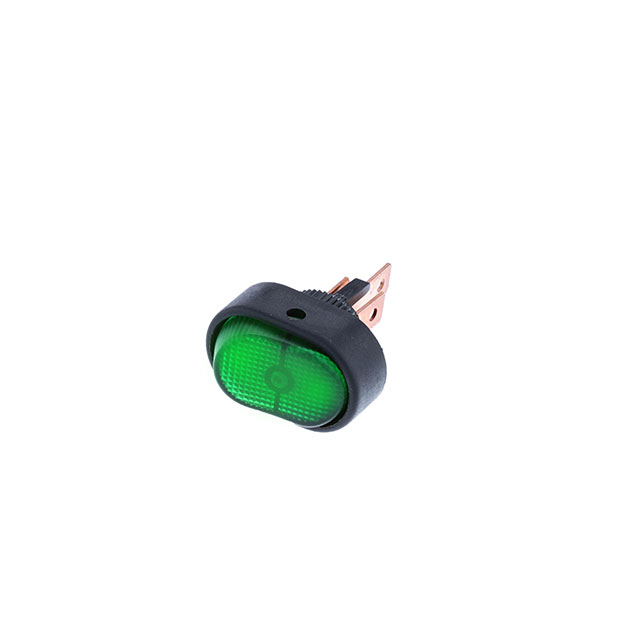

RD1-1A-DC-1-GL

Active

Switch Components

SWITCH ROCKER SPST 30A 12V

Search across all available documentation for this part.

Active

Switch Components

SWITCH ROCKER SPST 30A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RD1-1A-DC-1-GL	RD1-1A Series

Actuator Marking	No Marking	No Marking
Actuator Type	Concave (Curved) - Illuminated	Concave (Curved) - Illuminated, Concave (Curved)
Circuit	SPST	SPST
Color - Actuator/Cap	Green	Green, Blue, Amber, Black
Electrical Life	6000 Cycles	6000 Cycles
Illumination Type, Color	LED, Green	LED, Green, Blue, Amber
Illumination Voltage (Nominal)	12 VDC	12 VDC
Mechanical Life	10000 Steps	10000 Steps
Mounting Type	Panel Mount, Threaded Body with Nut	Panel Mount, Threaded Body with Nut
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	12.2 mm	12.2 mm
Switch Function	On-Off	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V	12 V

SWITCH ROCKER SPST 30A 12V

Part	Switch Function	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Illumination Type, Color	Termination Style	Mechanical Life	Mounting Type	Illumination Voltage (Nominal)	Actuator Marking	Circuit	Electrical Life	Panel Cutout Dimensions [diameter]	Actuator Type	Color - Actuator/Cap
Switch Components RD1-1A-DC-1-GL	On-Off	12 V	-25 °C	85 °C	Green, LED	Quick Connect - 0.250" (6.3mm)	10000 Steps	Panel Mount, Threaded Body with Nut	12 VDC	No Marking	SPST	6000 Cycles	12.2 mm	Concave (Curved) - Illuminated	Green
Switch Components RD1-1A-DC-1-UL	On-Off	12 V	-25 °C	85 °C	Blue, LED	Quick Connect - 0.250" (6.3mm)	10000 Steps	Panel Mount, Threaded Body with Nut	12 VDC	No Marking	SPST	6000 Cycles	12.2 mm	Concave (Curved) - Illuminated	Blue
Switch Components RD1-1A-DC-1-AL	On-Off	12 V	-25 °C	85 °C	Amber, LED	Quick Connect - 0.250" (6.3mm)	10000 Steps	Panel Mount, Threaded Body with Nut	12 VDC	No Marking	SPST	6000 Cycles	12.2 mm	Concave (Curved) - Illuminated	Amber
Switch Components RD1-1A-DC-1-B	On-Off	12 V	-25 °C	85 °C		Quick Connect - 0.250" (6.3mm)	10000 Steps	Panel Mount, Threaded Body with Nut		No Marking	SPST	6000 Cycles	12.2 mm	Concave (Curved)	Black
