TMC2590-TA-T
ActiveAnalog Devices Inc./Maxim Integrated

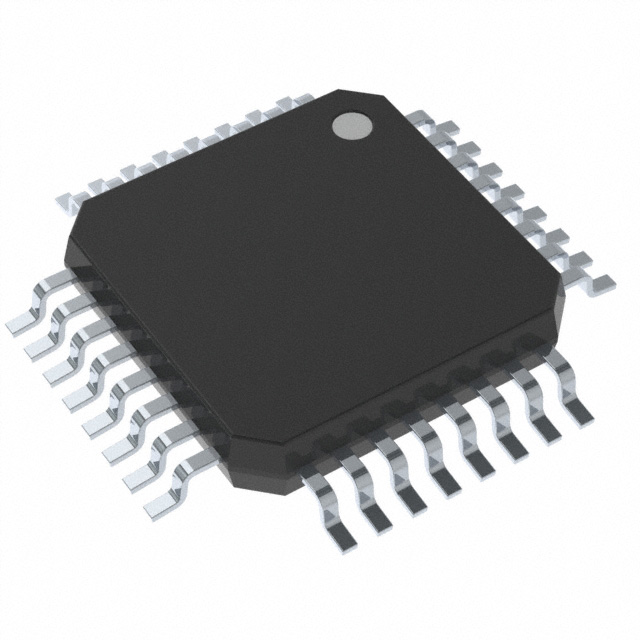

IC MTR DRVR BIPOLAR 5-60V 32TQFP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMC2590-TA-T
ActiveAnalog Devices Inc./Maxim Integrated
IC MTR DRVR BIPOLAR 5-60V 32TQFP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMC2590-TA-T | TMC2590 Series |
|---|---|---|
| Applications | Printer | Printer |
| Contents | - | Board(s) |
| Current - Output | 8 A | 8 A |
| Embedded | - | MCU, 32-Bit |
| Embedded | - | True |
| Function | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage |
| Interface | Step/Direction, SPI | Step/Direction, SPI |
| Motor Type - AC, DC | Universal | Universal |
| Motor Type - Stepper | Bipolar | Bipolar |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 125 ¯C | 125 ¯C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Configuration | Half Bridge (4) | Half Bridge (4) |
| Package / Case | 32-TQFP Exposed Pad | 32-TQFP Exposed Pad |
| Primary Attributes | - | Motors (Stepper) |
| Secondary Attributes | - | SPI Interface(s) |
| Step Resolution [Max] | 1 | 1 |
| Step Resolution [Min] | 0.00390625 | 0.00390625 |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | 32-TQFP-EP (5x5) | 32-TQFP-EP (5x5) |
| Technology | Power MOSFET | Power MOSFET |
| Type | - | Power Management |
| Utilized IC / Part | - | TMC2590 |
| Voltage - Load [Max] | 60 V | 60 V |
| Voltage - Load [Min] | 5 V | 5 V |
| Voltage - Supply [Max] | 5.25 V | 5.25 V |
| Voltage - Supply [Min] | 3 V | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.49 | |
| Digi-Reel® | 1 | $ 2.49 | ||
| Tape & Reel (TR) | 2000 | $ 2.47 | ||
| 4000 | $ 2.47 | |||
TMC2590 Series
EVAL KIT FOR TMC2590
| Part | Primary Attributes | Supplied Contents | Type | Embedded | Embedded | Contents | Utilized IC / Part | Secondary Attributes | Technology | Voltage - Supply [Max] | Voltage - Supply [Min] | Applications | Supplier Device Package | Voltage - Load [Max] | Voltage - Load [Min] | Step Resolution [Max] | Step Resolution [Min] | Output Configuration | Motor Type - Stepper | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output | Package / Case | Interface | Mounting Type | Function | Motor Type - AC, DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMC2590-EVAL-KIT | Motors (Stepper) | Board(s) | Power Management | 32-Bit, MCU | Board(s) | TMC2590 | SPI Interface(s) | ||||||||||||||||||||
Analog Devices Inc./Maxim Integrated TMC2590-BOB40 | Motors (Stepper) | Board(s) | Power Management | TMC2590 | SPI Interface(s) | ||||||||||||||||||||||
Analog Devices Inc./Maxim Integrated TMC2590-TA-T | Power MOSFET | 5.25 V | 3 V | Printer | 32-TQFP-EP (5x5) | 60 V | 5 V | 1 | 0.00390625 | Half Bridge (4) | Bipolar | -40 °C | 125 ¯C | 8 A | 32-TQFP Exposed Pad | SPI, Step/Direction | Surface Mount | Driver - Fully Integrated, Control and Power Stage | Universal | ||||||||
Analog Devices Inc./Maxim Integrated TMC2590-EVAL | Motors (Stepper) | Board(s) | Power Management | TMC2590 | SPI Interface(s) |
Description
General part information
TMC2590 Series
Bipolar Motor Driver Power MOSFET SPI, Step/Direction 32-TQFP-EP (5x5)
