Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DAE0133V2PBC | DAE0133 Series |
|---|---|---|
| - | - | |
| Applications | ITE (Commercial) | ITE (Commercial) |
| Approval Agency | CE, cURus | CE, cURus |
| Current - Output (Max) [Max] | 33 A | 33 A |
| Efficiency | 95.5 % | 95.5 % |
| Features | OVP, OTP, OCP, Remote On/Off, SCP | OVP, OTP, OCP, Remote On/Off, SCP |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | Eighth Brick | Eighth Brick |
| Power (Watts) | 396 W | 396 W |
| Size / Dimension | - | 22.9 mm |
| Size / Dimension | - | 13.2 mm |
| Size / Dimension [x] | 2.3 in | 2.3 in |
| Size / Dimension [x] | 58.4 mm | 58.4 mm |
| Size / Dimension [y] | 22.9 mm | 22.9 mm |
| Size / Dimension [y] | 0.9 " | 0.9 " |
| Size / Dimension [z] | 0.57 " | 0.52 - 0.57 " |
| Size / Dimension [z] | 14.5 mm | 14.5 mm |
| Supplier Device Package | Eighth Brick | Eighth Brick |
| Type | Isolated Module, Digital | Isolated Module, Digital |
| Voltage - Input (Max) [Max] | 75 V | 75 V |
| Voltage - Input (Min) [Min] | 36 V | 36 V |
| Voltage - Isolation | 2250 VDC | 2250 VDC |
| Voltage - Output 1 | 12 V | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
DAE0133 Series

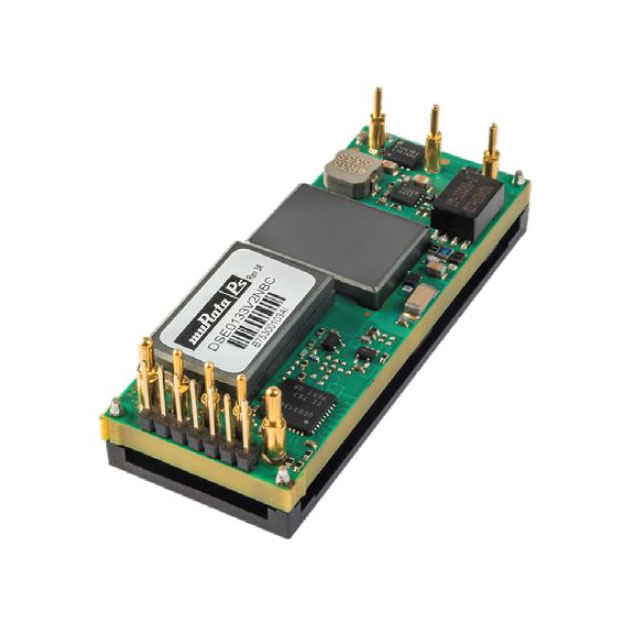

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 12VOUT @ 33A, NO PMBUS, WITH SENSE & TRIM, POS. LOGIC, BASEPLATE
| Part | Package / Case | Voltage - Input (Min) [Min] | Voltage - Isolation | Efficiency | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Applications | Voltage - Output 1 | Power (Watts) | Approval Agency | Current - Output (Max) [Max] | Mounting Type | Supplier Device Package | Voltage - Input (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Type | Features | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. DAE0133V2PBC | |||||||||||||||||||||||||
Murata Power Solutions Inc. DAE0133V2PBRC | |||||||||||||||||||||||||
Murata Power Solutions Inc. DAE0133V2PBC | Eighth Brick | 36 V | 2250 VDC | 95.5 % | 2.3 in | 58.4 mm | 22.9 mm | 0.57 " | 14.5 mm | 0.9 " | ITE (Commercial) | 12 V | 396 W | CE, cURus | 33 A | Through Hole | Eighth Brick | 75 V | 85 °C | -40 °C | 1 | Isolated Module, Digital | OCP, OTP, OVP, Remote On/Off, SCP | ||
Murata Power Solutions Inc. DAE0133V2PBRC | |||||||||||||||||||||||||
Murata Power Solutions Inc. DAE0133V2NBC | Eighth Brick | 36 V | 2250 VDC | 95.5 % | 2.3 in | 58.4 mm | 0.52 " | 0.9 " | ITE (Commercial) | 12 V | 396 W | CE, cURus | 33 A | Through Hole | Eighth Brick | 75 V | 85 °C | -40 °C | 1 | Isolated Module, Digital | OCP, OTP, OVP, SCP | 22.9 mm | 13.2 mm | ||
Murata Power Solutions Inc. DAE0133V2NBC | |||||||||||||||||||||||||
Murata Power Solutions Inc. DAE0133V2PBRC | Eighth Brick | 36 V | 2250 VDC | 95.5 % | 2.3 in | 58.4 mm | 0.52 " | 0.9 " | ITE (Commercial) | 12 V | 396 W | CE, cURus | 33 A | Through Hole | Eighth Brick | 75 V | 85 °C | -40 °C | 1 | Isolated Module, Digital | OCP, OTP, OVP, SCP | 22.9 mm | 13.2 mm | ||
Murata Power Solutions Inc. DAE0133V2NBC |
Description
General part information
DAE0133 Series
Isolated Module, Digital DC DC Converter 1 Output 12V 33A 36V - 75V Input
