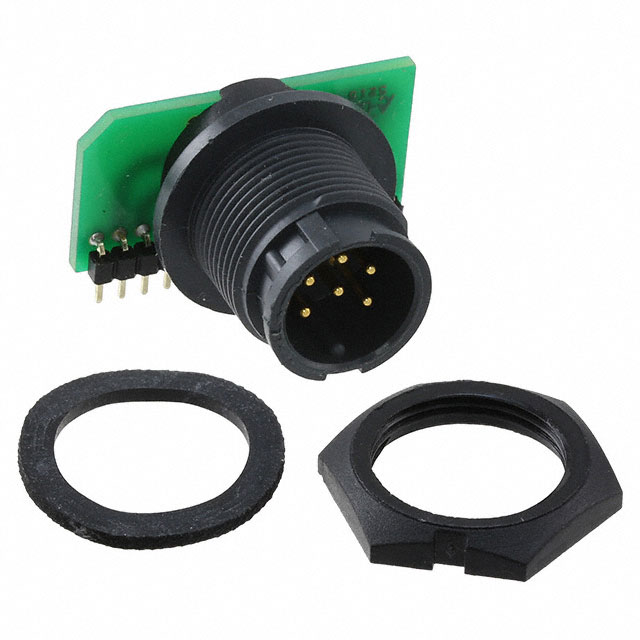

7251-6PG-300

Active

Conxall/Switchcraft

CONN RCPT MALE 6POS GOLD SOLDER

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 6POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	7251-6PG-300

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Ingress Protection	Weathertight
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	6
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Circuit Board, Solder

CONN RCPT MALE 6POS GOLD SOLDER

Part	Current Rating (Amps)	Contact Material	Ingress Protection	Connector Type	Insert Material	Contact Finish - Mating	Shielding	Primary Material	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Fastening Type	Backshell Material, Plating	Orientation	Mounting Type	Mounting Feature	Material Flammability Rating	Number of Positions	Color
Conxall/Switchcraft 7251-6PG-300	Varies by Wire Gauge	Copper Alloy	Weathertight	Male Pins, Receptacle	Thermoplastic	Gold	Unshielded	Plastic	Circuit Board, Solder	85 °C	-40 °C	Automotive, Communication Systems, Instrumentation	Bayonet Lock	Nylon, Polyamide (PA)	Keyed	Panel Mount, Right Angle, Through Hole	Bulkhead - Front Side Nut	UL94 V-0	6	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Male Pins Circuit Board, Solder
